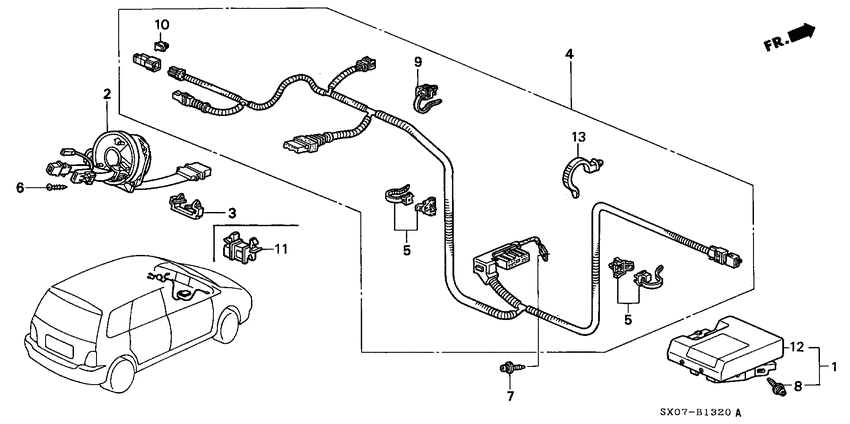

Srs unit (LH) Diagram Honda SHUTTLE
- Year
- 1996
- Model code
- SHUTTLE
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.2IES
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
- bench seat(2nd)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06772-SX0-A90
Srs unit kit
|
06772-SX0-A90 |
— | ||
|
2
|
2
77900-SX0-N01
Reel assy
|
77900-SX0-N01 |
— | ||
|
3
|
3
77907-SL4-N81 HolderCONNECTOR (5P) (SKY BLUE) |
77907-SL4-N81 |
US $4.13 |
||
|
4
|
4
77961-SX0-A01
Harness
|
77961-SX0-A01 |
— | ||
|
5
|
5
77963-SV4-A01 ClipSRS HARNESS (BLUE) (153MM) |
77963-SV4-A01 |
US $2.10 |
||
|
6
|
6
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
6
|
6
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
7
|
7
90137-SG0-A81 BoltTORX EARTH, 6X16 |
90137-SG0-A81 |
US $2.24 |
||
|
8
|
8
90138-SL0-A81 BoltTORX, 6X25 |
90138-SL0-A81 |
US $2.03 |
||
|
9
|
9
91546-SM4-A01 ClipHARNESS BAND (120MM) |
91546-SM4-A01 |
US $3.01 |
||
|
10
|
10
91556-SP0-003 ClipCOUPLER(BROWN) |
91556-SP0-003 |
from US $1.26 |
||
