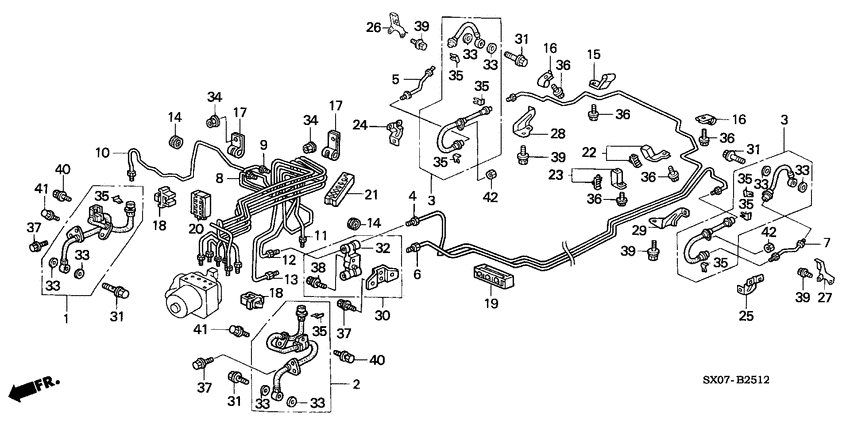

Brake line (LH; 98/99) Diagram Honda SHUTTLE
- Year
- 1998
- Model code
- SHUTTLE
- Sales region
- General
- Engine
- F23A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 2.3IES
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
- bench seat(2nd)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-SV4-000 Hose setR. FR. BRAKE |
01464-SV4-000 |
US $42.42 |
||
|
2
|
2
01465-SV4-000
Hose set
|
01465-SV4-000 |
— | ||
|
3
|
3
01466-SX0-000 Hose setRR. BRAKE |
01466-SX0-000 |
US $57.09 |
||
|
4
|
4
46330-SX0-000
Pipe comp. c
|
46330-SX0-000 |
— | ||
|
5
|
5
46331-SX0-000
Pipe comp. e
|
46331-SX0-000 |
— | ||
|
6
|
6
46340-SX0-000
Pipe comp. d
|
46340-SX0-000 |
— | ||
|
7
|
7
46361-SX0-000
Pipe comp. e
|
46361-SX0-000 |
— | ||
|
8
|
8
46374-SX0-A01
Pipe comp. u
|
46374-SX0-A01 |
— | ||
|
9
|
9
46375-SX0-A01
Pipe comp. v
|
46375-SX0-A01 |
— | ||
|
10
|
10
46376-SX0-A01
Pipe comp. w
|
46376-SX0-A01 |
— | ||
|
11
|
11
46377-SX0-A01
Pipe comp. x
|
46377-SX0-A01 |
— | ||
|
12
|
12
46378-SX0-A51
Pipe comp. y
|
46378-SX0-A51 |
— | ||
|
13
|
13
46379-SX0-A51
Pipe comp. z
|
46379-SX0-A51 |
— | ||
|
14
|
14
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $2.03 |
||
|
15
|
15
46391-SL4-000
Clip
|
46391-SL4-000 |
— | ||
|
16
|
16
46391-SM4-J01 ClampBRAKE PIPE |
46391-SM4-J01 |
US $3.92 |
||
|
17
|
17
46392-SR3-921 ClipBRAKE PIPE |
46392-SR3-921 |
US $6.02 |
||
|
18
|
18
46393-SM4-951 Clip c |
46393-SM4-951 |
US $6.51 |
||
|
19
|
19
46394-SH3-A01 ClipBRAKE PIPE |
46394-SH3-A01 |
US $7.33 |
||
|
20
|
20
46396-ST7-951
Clip A
|
46396-ST7-951 |
— | ||
|
21
|
21
46396-SV4-951
Clip
|
46396-SV4-951 |
— | ||
|
22
|
22
46396-SX0-000
Clip
|
46396-SX0-000 |
— | ||
|
23
|
23
46397-SX0-000
Clip
|
46397-SX0-000 |
— | ||
|
24
|
24
46427-SX0-000 Bracket aR. RR. BRAKE HOSE |
46427-SX0-000 |
US $5.46 |
||
|
25
|
25
46428-SX0-000 Bracket aL. RR. BRAKE HOSE |
46428-SX0-000 |
US $5.46 |
||
|
26
|
26
46435-SX0-000 Bracket bR. RR. BRAKE HOSE |
46435-SX0-000 |
US $4.90 |
||
|
27
|
27
46436-SX0-000 Bracket bL. RR. BRAKE HOSE |
46436-SX0-000 |
US $4.90 |
||
|
28
|
28
46438-SX0-000
Bracket
|
46438-SX0-000 |
— | ||
|
29
|
29
46439-SX0-000
Bracket
|
46439-SX0-000 |
— | ||
|
30
|
30
46460-SV4-950
Joint assy.
|
46460-SV4-950 |
— | ||
|
31
|
31
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
32
|
32
46470-SH9-802
Joint
|
46470-SH9-802 |
— | ||
|
33
|
33
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
34
|
34
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
35
|
35
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $3.03 |
||
|
36
|
36
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
37
|
37
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
38
|
38
93403-060-350-8 Bolt-washer6X35 |
93403-060-350-8 |
US $0.74 |
||
|
39
|
39
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
40
|
40
93412-080-160-8 Bolt-washer8X16 |
93412-080-160-8 |
from US $0.67 |
||
| replacement | |||||
|
40
|
40
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
41
|
41
93412-080-200-8
Bolt-washer
|
93412-080-200-8 |
— | ||
| replacement | |||||
|
41
|
41
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
42
|
42
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
42
|
42
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
