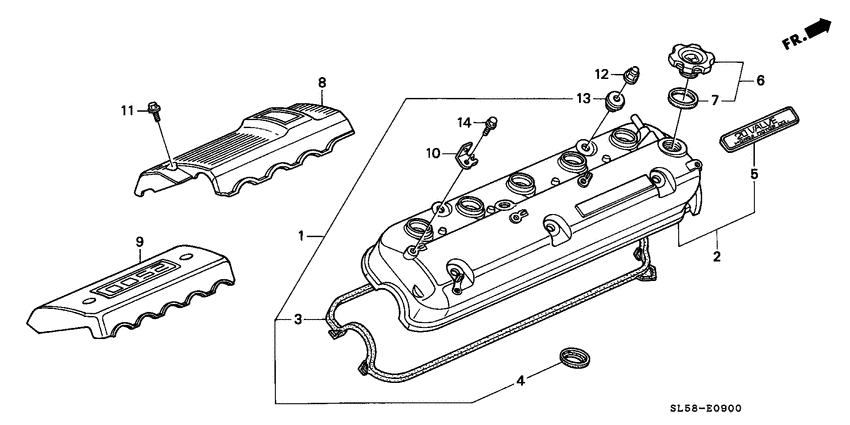

Cylinder head cover Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-PV0-000 Packing setHEAD COVER |
12030-PV0-000 |
US $84.48 |
||
|
2
|
2
12310-PV1-000
Cover comp.
|
12310-PV1-000 |
— | ||
|
3
|
3
12341-PV0-000 PackingCYLINDER HEAD COVER |
12341-PV0-000 |
US $20.10 |
||
|
4
|
4
12342-PT0-000 Packing bHEAD COVER |
12342-PT0-000 |
from US $5.42 |
||
|
5
|
5
12350-PV1-300
Emblem
|
12350-PV1-300 |
— | ||
|
6
|
6
15610-PC6-000 Cap assy.OIL FILLER |
15610-PC6-000 |
from US $11.40 |
||
|
7
|
7
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
9
|
9
17111-PV1-J00
Cover assy.
|
17111-PV1-J00 |
— | ||
|
10
|
10
32761-PV0-000 StayHIGH TENSION CORD CLAMP |
32761-PV0-000 |
US $7.30 |
||
|
11
|
11
90021-PV0-000 BoltSPECIAL, 6X15 |
90021-PV0-000 |
US $2.41 |
||
|
12
|
12
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.22 |
||
|
13
|
13
90441-PT0-000
Washer
|
90441-PT0-000 |
— | ||
|
14
|
14
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
