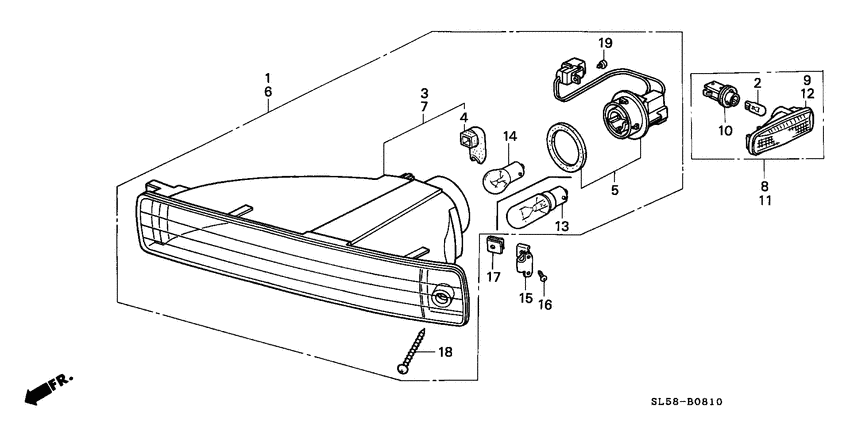

Front combination light Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33300-SL5-003
Light assy
|
33300-SL5-003 |
— | ||
|
2
|
2
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
4
|
4
33305-SM4-A01
Tube
|
33305-SM4-A01 |
— | ||
|
5
|
5
33333-SL5-A01
Cord comp
|
33333-SL5-A01 |
— | ||
|
6
|
6
33350-SL5-003
Light assy
|
33350-SL5-003 |
— | ||
|
8
|
8
34300-SL4-003
Light assy
|
34300-SL4-003 |
— | ||
|
9
|
9
34301-SL4-003 Lamp unitR. SIDE TURN |
34301-SL4-003 |
US $18.22 |
||
|
10
|
10
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
11
|
11
34350-SL4-003
Light assy
|
34350-SL4-003 |
— | ||
|
12
|
12
34351-SL4-003 Lamp unitL. SIDE TURN |
34351-SL4-003 |
US $16.73 |
||
|
14
|
14
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
15
|
15
71102-SL5-A00
Spring
|
71102-SL5-A00 |
— | ||
|
16
|
16
90102-SA7-003 ScrewTAPPING, 5X16 |
90102-SA7-003 |
US $2.21 |
||
|
17
|
17
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
18
|
18
93901-446J0 ScrewTAPPING, 4X25 |
93901-446J0 |
from US $0.67 |
||
|
19
|
19
93911-14120 ScrewTAPPING, 4X10 |
93911-14120 |
US $0.37 |
