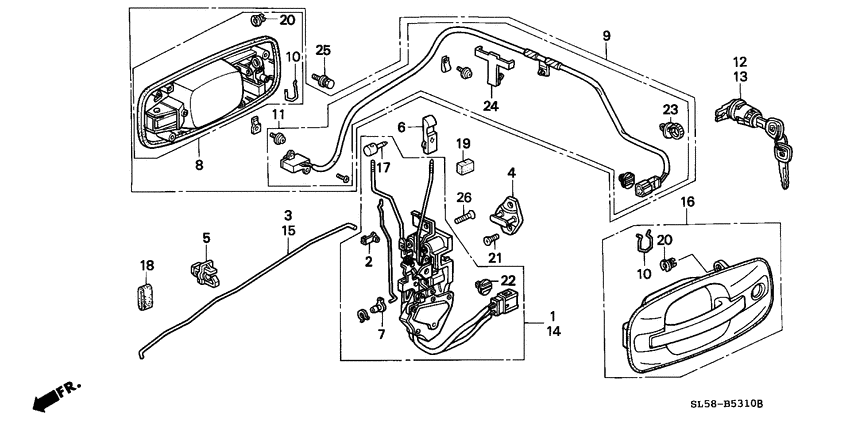

Front door locks Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-SL5-J02
Lock assy
|
72110-SL5-J02 |
— | ||
|
2
|
2
72116-SM4-003
Snap d
|
72116-SM4-003 |
— | ||
|
3
|
3
72131-SL4-003
Rod
|
72131-SL4-003 |
— | ||
|
4
|
4
72135-SM4-003
Striker assy
|
72135-SM4-003 |
— | ||
|
5
|
5
72136-SM4-003 HolderROD, 4MM |
72136-SM4-003 |
from US $1.44 |
||
|
6
|
6
72137-SL5-000ZB
Knob
|
72137-SL5-000ZB |
— | ||
|
9
|
9
72140-SL5-J01ZQ
Handle assy
|
72140-SL5-J01ZQ |
— | ||
|
9
|
9
72140-SL5-J01ZT
Handle assy
|
72140-SL5-J01ZT |
— | ||
|
9
|
9
72140-SL5-J01ZC
Handle assy
|
72140-SL5-J01ZC |
— | ||
|
9
|
9
72140-SL5-J01ZL
Handle assy
|
72140-SL5-J01ZL |
— | ||
|
9
|
9
72140-SL5-J01ZR
Handle assy
|
72140-SL5-J01ZR |
— | ||
|
10
|
10
72141-SL4-003
Ring
|
72141-SL4-003 |
— | ||
|
11
|
11
72142-SL5-J01
Receiver unit
|
72142-SL5-J01 |
— | ||
|
12
|
12
72145-SL4-003
Cylinder
|
72145-SL4-003 |
— | ||
|
13
|
13
72146-SL4-003
Cylinder
|
72146-SL4-003 |
— | ||
|
14
|
14
72150-SL5-J01
Lock assy
|
72150-SL5-J01 |
— | ||
|
15
|
15
72171-SL4-003
Rod
|
72171-SL4-003 |
— | ||
|
16
|
16
72180-SL5-A12ZV
Handle assy
|
72180-SL5-A12ZV |
— | ||
|
16
|
16
72180-SL5-A12ZB
Handle assy
|
72180-SL5-A12ZB |
— | ||
|
16
|
16
72180-SL5-A12ZT
Handle assy
|
72180-SL5-A12ZT |
— | ||
|
16
|
16
72180-SL5-A12ZP
Handle assy
|
72180-SL5-A12ZP |
— | ||
|
16
|
16
72180-SL5-A12ZS
Handle assy
|
72180-SL5-A12ZS |
— | ||
|
17
|
17
75411-634-000 Joint |
75411-634-000 |
US $2.52 |
||
|
18
|
18
75513-SB2-000 CushionLOCK ROD (35MMX58MM) |
75513-SB2-000 |
US $2.24 |
||
|
19
|
19
72138-SG0-000 CushionLOCK ROD (15MMX50MM) |
72138-SG0-000 |
US $2.59 |
||
|
20
|
20
75612-611-000 BushOUTSIDE HANDLE JOINT |
75612-611-000 |
US $3.01 |
||
|
21
|
21
90130-SM4-000 BoltLOCK STRIKER |
90130-SM4-000 |
US $1.68 |
||
|
22
|
22
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
23
|
23
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
24
|
24
91569-SK7-003 ClipWIRE HARNESS (NATURAL) (50MM) |
91569-SK7-003 |
US $2.66 |
||
|
25
|
25
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
26
|
26
93600-060-350-A ScrewFLAT, 6X35 |
93600-060-350-A |
from US $0.55 |
