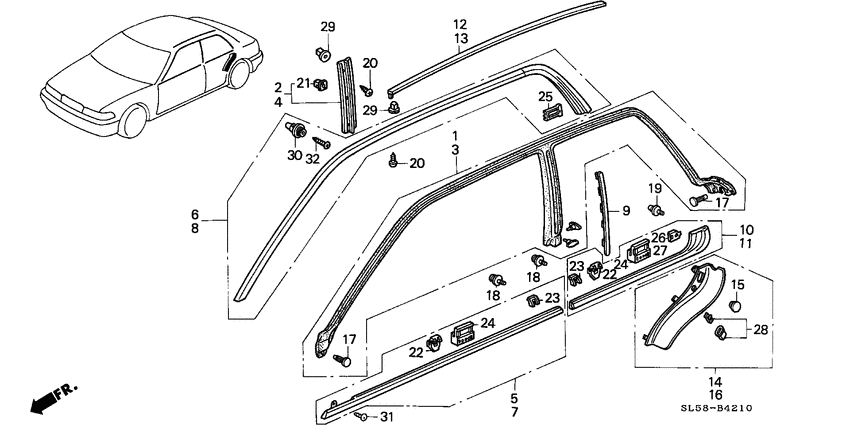

Molding Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72381-SL5-013
Weatherstrip
|
72381-SL5-013 |
— | ||
|
2
|
2
72385-SL4-003
Retainer assy
|
72385-SL4-003 |
— | ||
|
3
|
3
72391-SL5-013
Weatherstrip
|
72391-SL5-013 |
— | ||
|
4
|
4
72395-SL4-003
Retainer assy
|
72395-SL4-003 |
— | ||
|
5
|
5
72410-SL5-003
Molding assy.
|
72410-SL5-003 |
— | ||
|
6
|
6
72420-SL4-003
Molding comp.
|
72420-SL4-003 |
— | ||
|
7
|
7
72450-SL5-003
Molding assy.
|
72450-SL5-003 |
— | ||
|
8
|
8
72460-SL4-003
Molding comp.
|
72460-SL4-003 |
— | ||
|
9
|
9
72525-SL4-000
Molding
|
72525-SL4-000 |
— | ||
|
10
|
10
72910-SL4-023
Molding assy.
|
72910-SL4-023 |
— | ||
|
11
|
11
72950-SL4-023
Molding assy.
|
72950-SL4-023 |
— | ||
|
12
|
12
74306-SL4-940ZU
Molding
|
74306-SL4-940ZU |
— | ||
|
12
|
12
74306-SL4-940ZD
Molding
|
74306-SL4-940ZD |
— | ||
|
12
|
12
74306-SL4-940ZX
Molding
|
74306-SL4-940ZX |
— | ||
|
12
|
12
74306-SL4-940ZN
Molding
|
74306-SL4-940ZN |
— | ||
|
12
|
12
74306-SL4-940ZV
Molding
|
74306-SL4-940ZV |
— | ||
|
13
|
13
74316-SL4-940ZV
Molding
|
74316-SL4-940ZV |
— | ||
|
13
|
13
74316-SL4-940ZU
Molding
|
74316-SL4-940ZU |
— | ||
|
13
|
13
74316-SL4-940ZD
Molding
|
74316-SL4-940ZD |
— | ||
|
13
|
13
74316-SL4-940ZX
Molding
|
74316-SL4-940ZX |
— | ||
|
13
|
13
74316-SL4-940ZN
Molding
|
74316-SL4-940ZN |
— | ||
|
14
|
14
74401-SL5-A00
Garnish
|
74401-SL5-A00 |
— | ||
|
15
|
15
74402-SL5-A00
Stopper
|
74402-SL5-A00 |
— | ||
|
16
|
16
74451-SL5-A00
Garnish
|
74451-SL5-A00 |
— | ||
|
17
|
17
90001-SG0-003 ClipDOOR WEATHERSTRIP |
90001-SG0-003 |
US $2.17 |
||
|
18
|
18
90141-SL4-003 Screw-washer a4X8 |
90141-SL4-003 |
US $3.85 |
||
|
19
|
19
90142-SL4-003
Screw-washer b
|
90142-SL4-003 |
— | ||
|
20
|
20
90146-SL4-003 ScrewTAPPING, 5X12 |
90146-SL4-003 |
US $4.59 |
||
|
21
|
21
90665-SG0-003
Grommet
|
90665-SG0-003 |
— | ||
|
22
|
22
91561-SL4-003 ClipDOOR MOLDING |
91561-SL4-003 |
US $1.82 |
||
|
23
|
23
91562-SL4-003
Clip
|
91562-SL4-003 |
— | ||
|
24
|
24
91563-SL4-013
Stabilizer
|
91563-SL4-013 |
— | ||
|
25
|
25
91566-SL4-003
Clip
|
91566-SL4-003 |
— | ||
|
26
|
26
91577-SL4-003
Holder
|
91577-SL4-003 |
— | ||
|
27
|
27
91578-SL4-003
Holder
|
91578-SL4-003 |
— | ||
|
28
|
28
91641-SH3-013 Grommet assy, GARNISH |
91641-SH3-013 |
from US $2.60 |
||
|
29
|
29
91651-SL4-003 GrommetDRIP & RETAINER |
91651-SL4-003 |
US $1.85 |
||
|
30
|
30
91652-SL4-003
Grommet
|
91652-SL4-003 |
— | ||
|
31
|
31
93903-442G0 ScrewTAPPING, 4X10 |
93903-442G0 |
US $0.67 |
||
|
32
|
32
93903-446J0 ScrewTAPPING, 4X25 |
93903-446J0 |
US $0.37 |
