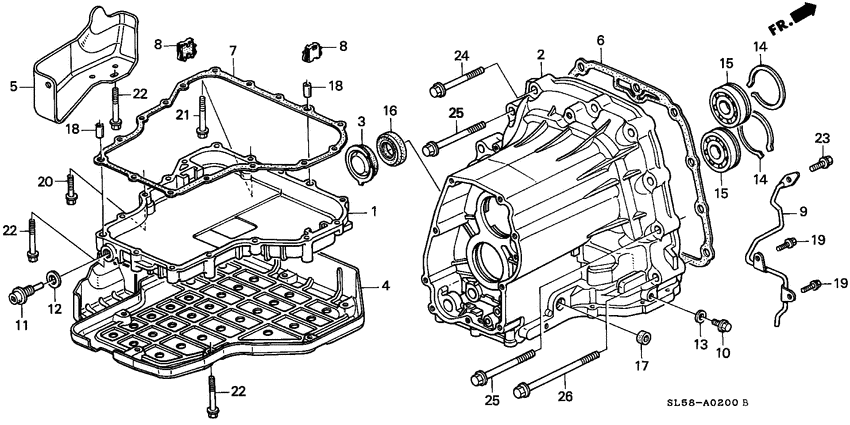

Transmission housing Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21151-PW4-Z00
Pan
|
21151-PW4-Z00 |
— | ||
|
2
|
2
21211-PW4-040
Case
|
21211-PW4-040 |
— | ||
|
3
|
3
21315-PW8-005
Cover
00000000 - 0C100066 |
21315-PW8-005 |
— | ||
|
5
|
5
21721-PW4-Z00
Cover
|
21721-PW4-Z00 |
— | ||
|
6
|
6
21811-PW7-000
Packing
|
21811-PW7-000 |
— | ||
|
7
|
7
21813-PW7-000
Packing
|
21813-PW7-000 |
— | ||
|
9
|
9
25630-PW4-020 Pipe compLUBRICATION |
25630-PW4-020 |
US $16.64 |
||
|
10
|
10
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
11
|
11
90081-PX4-003 BoltPLUG, 18MM |
90081-PX4-003 |
from US $5.54 |
||
|
12
|
12
90471-PX4-000 WasherDRAIN PLUG, 18MM |
90471-PX4-000 |
from US $1.58 |
||
|
13
|
13
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
14
|
14
90615-PF4-000 RingSNAP, 75MM |
90615-PF4-000 |
US $2.73 |
||
|
15
|
15
91002-PL5-J01
Bearing
|
91002-PL5-J01 |
— | ||
|
16
|
16
91206-PW5-015 Oil seal40X56X8 (NOK) |
91206-PW5-015 |
US $7.98 |
||
|
17
|
17
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
17
|
17
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
18
|
18
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
20
|
20
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
21
|
21
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
22
|
22
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
23
|
23
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
24
|
24
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
25
|
25
95701-100-700-8 BoltFLANGE, 10X70 |
95701-100-700-8 |
from US $1.18 |
||
|
26
|
26
95701-101-000-8 BoltFLANGE, 10X100 |
95701-101-000-8 |
from US $0.74 |
||
