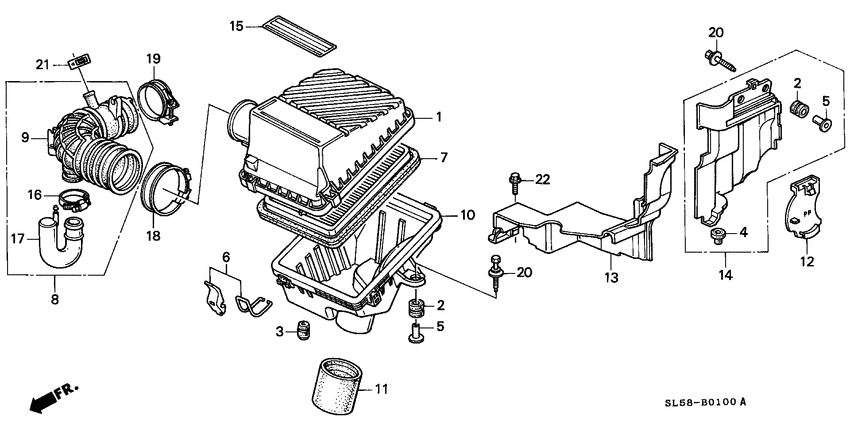

Air cleaner Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-PV1-000
Cover
|
17210-PV1-000 |
— | ||
|
2
|
2
17213-PT2-000 RubberAIR CLEANER CASE MOUNTING |
17213-PT2-000 |
US $2.17 |
||
|
3
|
3
17213-PV0-000 RubberAIR CLEANER CASE MOUNTING |
17213-PV0-000 |
US $2.10 |
||
|
4
|
4
17213-PV1-000
Rubber
|
17213-PV1-000 |
— | ||
|
5
|
5
17214-PT2-000 CollarAIR CLEANER MOUNTING |
17214-PT2-000 |
US $2.31 |
||
|
6
|
6
17215-PV1-000
Clip set
|
17215-PV1-000 |
— | ||
|
7
|
7
17220-PV1-000
Element assy.
|
17220-PV1-000 |
— | ||
|
9
|
9
17228-PV1-000
Tube
|
17228-PV1-000 |
— | ||
|
10
|
10
17240-PV1-J00
Case comp.
|
17240-PV1-J00 |
— | ||
|
11
|
11
17242-PV1-000
Tube
|
17242-PV1-000 |
— | ||
|
12
|
12
17244-PV1-000
Cover
|
17244-PV1-000 |
— | ||
|
13
|
13
17247-PV0-J00
Cover a
|
17247-PV0-J00 |
— | ||
|
14
|
14
17249-PV1-000
Cover assy. b
|
17249-PV1-000 |
— | ||
|
15
|
15
17273-PV1-U00
Plate
|
17273-PV1-U00 |
— | ||
|
16
|
16
17284-PT2-003 ClampTUBE, 44MM |
17284-PT2-003 |
US $6.86 |
||
|
17
|
17
17285-PV0-000
Tube
|
17285-PV0-000 |
— | ||
|
18
|
18
17314-PV1-003 ClampAIR CLEANER (85) |
17314-PV1-003 |
US $4.62 |
||
|
19
|
19
17316-PH3-003 ClampAIR FLOW TUBE (70) |
17316-PH3-003 |
US $4.06 |
||
|
20
|
20
90010-PT2-000
Bolt-washer
|
90010-PT2-000 |
— | ||
|
21
|
21
91405-PE0-003 ClampTUBE (D20) |
91405-PE0-003 |
US $6.83 |
||
| replacement | |||||
|
21
|
21
91417-SZ3-003 ClampFUEL TUBE (D20) (CHUO HATSUJO) |
91417-SZ3-003 |
from US $2.93 |
||
|
22
|
22
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
