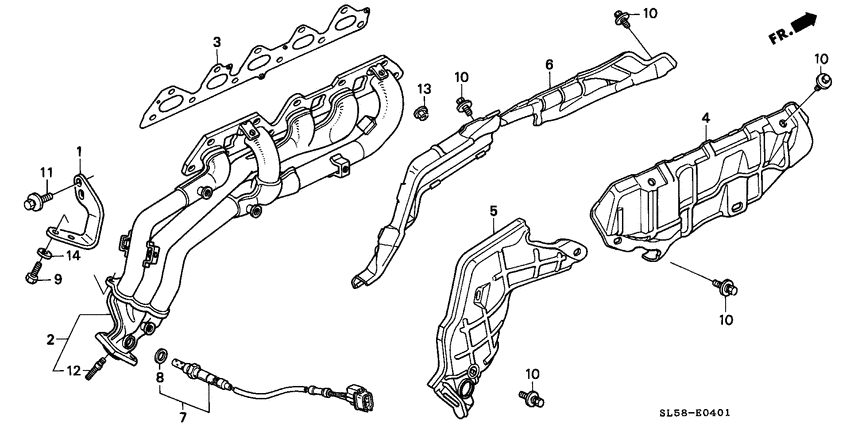

Exhaust manifold (2) Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11941-PV0-900
Stay
|
11941-PV0-900 |
— | ||
|
2
|
2
18000-PV0-J00
Manifold assy
|
18000-PV0-J00 |
— | ||
|
3
|
3
18115-PV0-003
Gasket
|
18115-PV0-003 |
— | ||
| replacement | |||||
|
3
|
3
18115-PV3-003
Gskt,exh mnfld
|
18115-PV3-003 |
— | ||
|
4
|
4
18120-PV0-000
Cover a
|
18120-PV0-000 |
— | ||
|
5
|
5
18121-PV0-J00
Cover b
|
18121-PV0-J00 |
— | ||
|
6
|
6
18122-PV0-J00
Cover c
|
18122-PV0-J00 |
— | ||
|
7
|
7
36531-PV1-A02
Sensor
|
36531-PV1-A02 |
— | ||
|
8
|
8
36536-PJ7-004 GasketEXTERNAL |
36536-PJ7-004 |
US $4.34 |
||
|
9
|
9
90010-657-010
Bolt
|
90010-657-010 |
— | ||
|
10
|
10
90015-PH7-000 Bolt-washer8X14 |
90015-PH7-000 |
US $2.17 |
||
| replacement | |||||
|
10
|
10
90015-PT0-J00 Bolt-washer8X14 |
90015-PT0-J00 |
US $1.70 |
||
|
11
|
11
90020-PV0-003
Bolt-washer
|
90020-PV0-003 |
— | ||
|
12
|
12
90065-PC1-300 BoltSTUD, 10X34.5 |
90065-PC1-300 |
US $9.77 |
||
|
13
|
13
90217-657-000 Nut, SPECIAL, 8MM |
90217-657-000 |
from US $1.68 |
||
|
14
|
14
90451-657-000
Washer
|
90451-657-000 |
— | ||
