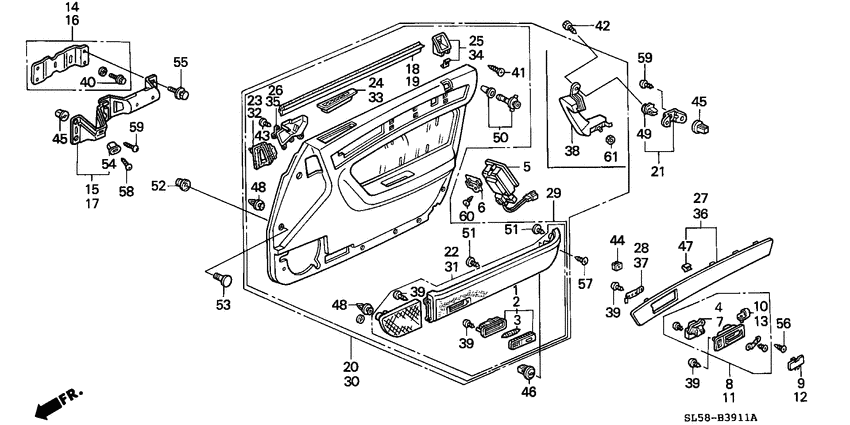

Front door lining (2) Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34256-SL4-013ZA
Light assy
|
34256-SL4-013ZA |
— | ||
|
2
|
2
34257-SL4-013ZA
Light assy
|
34257-SL4-013ZA |
— | ||
|
3
|
3
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
3
|
3
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
4
|
4
35380-SL4-013
Switch assy
|
35380-SL4-013 |
— | ||
|
5
|
5
35750-SL4-013ZA
Switch assy
|
35750-SL4-013ZA |
— | ||
|
6
|
6
35751-SL4-003
Bracket
|
35751-SL4-003 |
— | ||
|
7
|
7
35765-SL4-013
Switch assy
|
35765-SL4-013 |
— | ||
|
8
|
8
72120-SL4-023
Handle assy
|
72120-SL4-023 |
— | ||
|
9
|
9
72121-SL4-003
Cap
|
72121-SL4-003 |
— | ||
|
10
|
10
72134-SM4-003
Snap
|
72134-SM4-003 |
— | ||
|
11
|
11
72160-SL4-023
Handle assy
|
72160-SL4-023 |
— | ||
|
12
|
12
72161-SL4-003
Cap
|
72161-SL4-003 |
— | ||
|
13
|
13
72174-SM4-003
Snap
|
72174-SM4-003 |
— | ||
|
14
|
14
72228-SL5-000
Patch
|
72228-SL5-000 |
— | ||
|
15
|
15
72229-SL5-000
Damper & bracket assy.
|
72229-SL5-000 |
— | ||
|
16
|
16
72268-SL5-000
Patch
|
72268-SL5-000 |
— | ||
|
17
|
17
72269-SL5-000
Damper & bracket assy.
|
72269-SL5-000 |
— | ||
|
18
|
18
72335-SL4-003
Weatherstrip
|
72335-SL4-003 |
— | ||
|
19
|
19
72375-SL4-003
Weatherstrip
|
72375-SL4-003 |
— | ||
|
20
|
20
83500-SL4-930ZC
Lining
|
83500-SL4-930ZC |
— | ||
|
21
|
21
83501-SL4-010
Bracket
|
83501-SL4-010 |
— | ||
|
22
|
22
83504-SL4-900ZA
Pocket assy
|
83504-SL4-900ZA |
— | ||
|
22
|
22
83504-SL4-000ZA
Pocket assy
|
83504-SL4-000ZA |
— | ||
|
23
|
23
83506-SL4-000
Seal
|
83506-SL4-000 |
— | ||
|
24
|
24
83507-SL4-000ZA
Garnish
|
83507-SL4-000ZA |
— | ||
|
25
|
25
83508-SL4-000ZA
Cover
|
83508-SL4-000ZA |
— | ||
|
26
|
26
83512-SL4-000
Duct
|
83512-SL4-000 |
— | ||
|
27
|
27
83519-SL5-A10ZC
Garnish
|
83519-SL5-A10ZC |
— | ||
|
28
|
28
83521-SL4-020
Bracket
|
83521-SL4-020 |
— | ||
|
29
|
29
83533-SL4-930ZC
Base comp.
|
83533-SL4-930ZC |
— | ||
|
29
|
29
83533-SL5-J00ZA
Base comp.
|
83533-SL5-J00ZA |
— | ||
|
30
|
30
83550-SL5-J00ZA
Lining
|
83550-SL5-J00ZA |
— | ||
|
30
|
30
83550-SL4-930ZC
Lining
|
83550-SL4-930ZC |
— | ||
|
31
|
31
83554-SL4-900ZA
Pocket assy
|
83554-SL4-900ZA |
— | ||
|
31
|
31
83554-SL4-000ZA
Pocket assy
|
83554-SL4-000ZA |
— | ||
|
32
|
32
83556-SL4-000
Seal
|
83556-SL4-000 |
— | ||
|
33
|
33
83557-SL4-000ZA
Garnish
|
83557-SL4-000ZA |
— | ||
|
34
|
34
83558-SL4-000ZA
Cover
|
83558-SL4-000ZA |
— | ||
|
35
|
35
83562-SL4-000
Duct
|
83562-SL4-000 |
— | ||
|
36
|
36
83569-SL5-A10ZC
Garnish
|
83569-SL5-A10ZC |
— | ||
|
37
|
37
83571-SL4-020
Bracket
|
83571-SL4-020 |
— | ||
|
38
|
38
83591-SL4-000ZA
Grip
|
83591-SL4-000ZA |
— | ||
|
39
|
39
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
39
|
39
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
40
|
40
90115-SG0-003 BoltFLANGE, 6MM |
90115-SG0-003 |
US $1.47 |
||
|
41
|
41
90122-SL4-000
Screw
|
90122-SL4-000 |
— | ||
|
42
|
42
90137-SL4-003 ScrewTAPPING, 6X20 |
90137-SL4-003 |
US $1.82 |
||
|
43
|
43
90144-SL4-003 Screw4X10 |
90144-SL4-003 |
US $3.58 |
||
|
44
|
44
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
45
|
45
90662-693-003 GrommetSCREW, 4MM (BLUE) |
90662-693-003 |
US $1.68 |
||
|
46
|
46
90663-SB0-003 GrommetSCREW, 5MM(YELLOW) |
90663-SB0-003 |
US $1.63 |
||
|
47
|
47
90667-SL4-003
Clip
|
90667-SL4-003 |
— | ||
|
48
|
48
91560-SL4-003 ClipDOOR LINING |
91560-SL4-003 |
US $2.60 |
||
|
49
|
49
91561-SE3-003 GrommetSCREW, 6MM |
91561-SE3-003 |
US $2.10 |
||
|
50
|
50
91562-SE3-003
Clip
|
91562-SE3-003 |
— | ||
|
51
|
51
91562-SM4-000
Screw
|
91562-SM4-000 |
— | ||
|
52
|
52
91562-SM4-013 GrommetDOOR LINING |
91562-SM4-013 |
US $1.75 |
||
|
53
|
53
91564-SL4-003ZA
Clip
|
91564-SL4-003ZA |
— | ||
|
54
|
54
91638-SD4-003
Grommet
|
91638-SD4-003 |
— | ||
|
55
|
55
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
56
|
56
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
57
|
57
93903-15380 ScrewTAPPING, 5X16 |
93903-15380 |
from US $0.37 |
||
|
58
|
58
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
59
|
59
93903-45280 ScrewTAPPING, 5X12 |
93903-45280 |
from US $0.37 |
||
|
60
|
60
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
61
|
61
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
