Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 35950-SL4-J20ZA Switch assy	35950-SL4-J20ZA	—
2	2 77208-SA6-004 Bush	77208-SA6-004	—
3	3 77209-SB0-003 Washer	77209-SB0-003	—
4	4 77517-SA5-014 Cap SLIDE ADJUSTER	77517-SA5-014	US $4.48
5	5 81110-SL4-J22 Device comp.	81110-SL4-J22	—
6	6 81113-SL4-J22 Motor assy.	81113-SL4-J22	—
7	7 81114-SL4-J22 Motor assy.	81114-SL4-J22	—
8	8 81117-SM4-E52 Box assy	81117-SM4-E52	—
9	9 81261-SM4-J32 Cap RAIL END LOWER	81261-SM4-J32	US $3.92
10	10 81262-SM4-J32 Cap RAIL END UPPER	81262-SM4-J32	US $3.92
11	11 81266-SD4-J31 Cable	81266-SD4-J31	—
12	12 81270-SL4-J22 Adjuster	81270-SL4-J22	—
13	13 81311-SL6-J20 Cord a	81311-SL6-J20	—
14	14 81324-SL4-003 Nut a	81324-SL4-003	—
15	15 90133-SP0-003 Screw a	90133-SP0-003	US $1.68
16	16 90324-SM4-003 Nut	90324-SM4-003	US $1.82
17	17 91507-693-003 Clip WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	91507-693-003	from US $1.89
18	18 91551-SF4-003 Band WIRE HARNESS(BROWN) (110MM)	91551-SF4-003	from US $2.59
19	19 91555-SM4-003 Clip COUPLER (RED)	91555-SM4-003	from US $2.15
20	20 91560-SE0-003 Band a HARNESS (NATURAL)	91560-SE0-003	from US $2.24
21	21 91567-SE0-003 Band WIRE HARNESS(WHITE) (93.5MM)	91567-SE0-003	from US $3.08
22	22 90128-SP0-003 Bolt 0C000407 -	90128-SP0-003	—
22	22 93402-050-120-8 Bolt-washer 5X12 00000000 - 0C000406	93402-050-120-8	US $0.52
23	23 93402-100-250-7 Bolt-washer 10X25	93402-100-250-7	US $0.81
24	24 93405-100-200-7 Bolt-washer 10X20	93405-100-200-7	US $0.86
25	25 93903-24110 Screw TAPPING, 4X8	93903-24110	from US $0.37
26	26 94070-08080 Nut-washer 8MM	94070-08080	from US $0.52

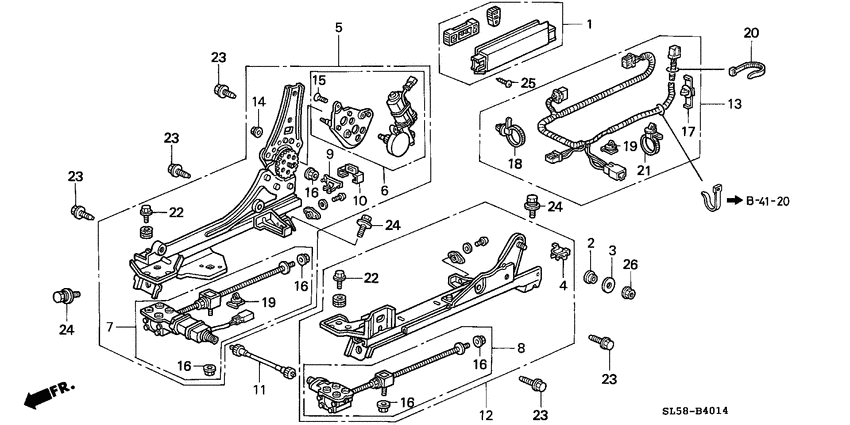

Front seat components (5) Diagram Honda VIGOR General 7072775-550300

Front seat components (5) Diagram Honda VIGOR General 7072775-550300
