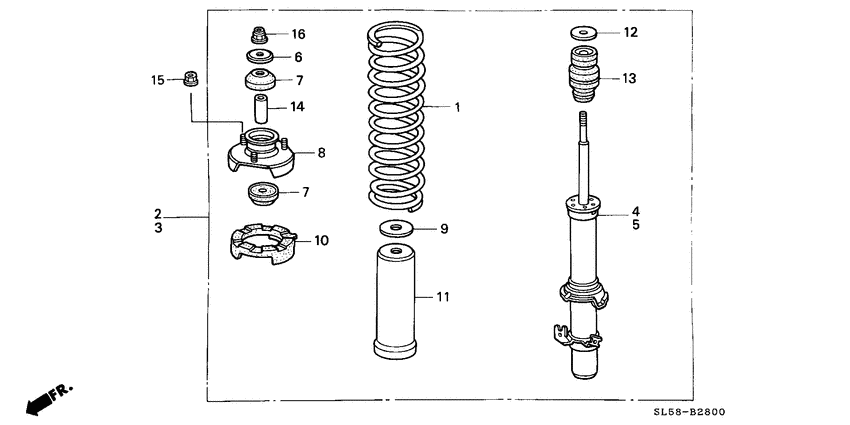

Front shock absorber Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51401-SL5-902
Spring
|
51401-SL5-902 |
— | ||
|
2
|
2
51601-SL5-902
Absorber assy
|
51601-SL5-902 |
— | ||
|
3
|
3
51602-SL5-902
Absorber assy
|
51602-SL5-902 |
— | ||
|
4
|
4
51605-SL5-J03
Absorber unit
|
51605-SL5-J03 |
— | ||
|
5
|
5
51606-SL5-J03
Absorber unit
|
51606-SL5-J03 |
— | ||
|
6
|
6
51621-SD4-004
Washer
|
51621-SD4-004 |
— | ||
|
7
|
7
51631-SL0-003 RubberSHOCK ABSORBER MOUNTING |
51631-SL0-003 |
from US $5.91 |
||
|
8
|
8
51675-SM4-004
Base
|
51675-SM4-004 |
— | ||
|
9
|
9
51685-SH3-014 PlateDUST COVER(SHOWA) |
51685-SH3-014 |
US $2.80 |
||
|
10
|
10
51686-SM4-004 RubberFR. SPRING SEAT (SHOWA) |
51686-SM4-004 |
US $14.85 |
||
|
11
|
11
51687-SM4-014
Cover
|
51687-SM4-014 |
— | ||
|
12
|
12
51689-SH3-004 PlateBUMP STOP (SHOWA) |
51689-SH3-004 |
US $3.42 |
||
|
13
|
13
51722-SL4-003 RubberFR. BUMP STOPPER (POLYURETHAN KASEI) |
51722-SL4-003 |
US $11.34 |
||
|
14
|
14
51728-SB0-003 CollarSHOCK ABSORBER MOUNTING(TOKICO) |
51728-SB0-003 |
US $4.20 |
||
|
15
|
15
90304-SM4-000 NutFR. SHOCK ABSORBER FLANGE (10MM) |
90304-SM4-000 |
US $3.92 |
||
|
16
|
16
90364-SG0-004 NutSELF-LOCK, 10MM (SHOWA) (NYLON) |
90364-SG0-004 |
US $2.93 |
