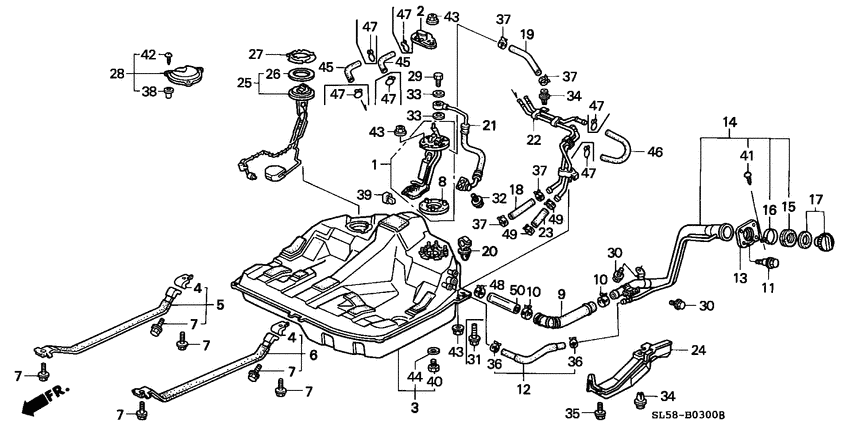

Fuel tank Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17040-SL4-930 Pump setFUEL |
17040-SL4-930 |
US $552.96 |
||
|
2
|
2
17371-SM4-013
Valve
|
17371-SM4-013 |
— | ||
|
3
|
3
17500-SL4-932
Tank comp.
0C000259 - |
17500-SL4-932 |
— | ||
|
3
|
3
17500-SL4-931
Tank comp.
00000000 - 0C000258 |
17500-SL4-931 |
— | ||
|
4
|
4
17511-SM4-000 BracketFUEL TANK BAND |
17511-SM4-000 |
US $7.33 |
||
|
5
|
5
17521-SL4-030
Band assy.
|
17521-SL4-030 |
— | ||
|
6
|
6
17522-SL4-030
Band assy.
|
17522-SL4-030 |
— | ||
|
7
|
7
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
8
|
8
17574-SE0-000 PackingBASE |
17574-SE0-000 |
from US $7.51 |
||
|
9
|
9
17651-SL5-A00
Tube
|
17651-SL5-A00 |
— | ||
|
10
|
10
17652-SL0-003
Clip
|
17652-SL0-003 |
— | ||
| replacement | |||||
|
10
|
10
17652-T0A-003 CLIP, FILLER TUBE |
17652-T0A-003 |
US $4.40 |
||
|
11
|
11
17656-SM4-000
Bolt
|
17656-SM4-000 |
— | ||
|
12
|
12
17658-SM4-000
Tube assy
|
17658-SM4-000 |
— | ||
|
13
|
13
17659-SL5-000
Holder
|
17659-SL5-000 |
— | ||
|
14
|
14
17660-SL5-A01
Pipe comp
|
17660-SL5-A01 |
— | ||
|
15
|
15
17662-SL5-000
Packing
|
17662-SL5-000 |
— | ||
|
16
|
16
17663-SL5-A00
Band
|
17663-SL5-A00 |
— | ||
|
17
|
17
17670-SM4-004 Cap comp.FUEL FILLER (TOYODA) |
17670-SM4-004 |
US $25.09 |
||
|
18
|
18
17702-SL4-930
Hose
|
17702-SL4-930 |
— | ||
|
19
|
19
17704-SL4-930 HoseFUEL TANK RETURN (100MM) |
17704-SL4-930 |
US $12.32 |
||
|
20
|
20
17706-SM4-931
Clamp
|
17706-SM4-931 |
— | ||
|
21
|
21
17707-SM4-931
Hose comp.
|
17707-SM4-931 |
— | ||
|
22
|
22
17731-SL4-930
Pipe comp
|
17731-SL4-930 |
— | ||
|
23
|
23
17732-SL4-000
Hose
|
17732-SL4-000 |
— | ||
|
24
|
24
17733-SL4-931
Protector
|
17733-SL4-931 |
— | ||
|
25
|
25
37800-SL4-013
Meter unit
|
37800-SL4-013 |
— | ||
|
26
|
26
37801-SE3-000
Packing
|
37801-SE3-000 |
— | ||
|
27
|
27
37802-SE0-000
Retainer
|
37802-SE0-000 |
— | ||
|
28
|
28
74660-SM4-000
Cap assy.
|
74660-SM4-000 |
— | ||
|
29
|
29
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
30
|
30
90146-SM4-000
Bolt-washer
|
90146-SM4-000 |
— | ||
|
32
|
32
90164-SD4-000 Bolt-washer6X16 |
90164-SD4-000 |
US $1.96 |
||
|
33
|
33
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
34
|
34
90657-SH3-013 ClipTWO WAY VALVE COVER |
90657-SH3-013 |
US $4.74 |
||
|
35
|
35
90671-SB2-000 BoltFR. FENDER (DACRO COATING) |
90671-SB2-000 |
US $3.29 |
||
|
36
|
36
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
37
|
37
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
38
|
38
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
39
|
39
91691-SE0-003
Clip
|
91691-SE0-003 |
— | ||
|
40
|
40
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
41
|
41
93901-24120 ScrewTAPPING, 4X8 |
93901-24120 |
from US $0.37 |
||
|
42
|
42
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
43
|
43
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
44
|
44
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
45
|
45
95001-551-103-0
Tube
|
95001-551-103-0 |
— | ||
|
46
|
46
95001-551-603-0
Tube
|
95001-551-603-0 |
— | ||
|
47
|
47
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
48
|
48
95002-410-000-8 ClampTUBE (D10) |
95002-410-000-8 |
from US $0.74 |
||
|
49
|
49
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
50
|
50
95003-190-206-0 TubeVINYL, 7X11X200 (95003-19001-60M) |
95003-190-206-0 |
US $1.04 |
||
