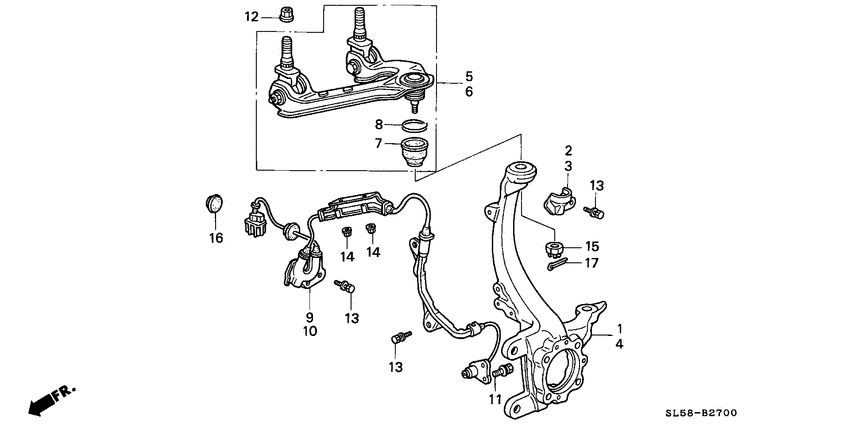

Knuckle Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51211-SL5-A01
Knuckle
|
51211-SL5-A01 |
— | ||
|
2
|
2
51213-SL5-000
Protector
|
51213-SL5-000 |
— | ||
|
3
|
3
51214-SL5-000
Protector
|
51214-SL5-000 |
— | ||
|
4
|
4
51216-SL5-A01
Knuckle
|
51216-SL5-A01 |
— | ||
|
5
|
5
51450-SL5-961 Arm assy.R. FR. UPPER (ABS) |
51450-SL5-961 |
US $158.72 |
||
|
6
|
6
51460-SL5-961 Arm assy.L. FR. UPPER (ABS) |
51460-SL5-961 |
US $158.72 |
||
|
7
|
7
53546-SA0-003 BootTIE ROD END (MUSASHI) |
53546-SA0-003 |
US $13.44 |
||
|
8
|
8
53548-SL0-A01 CirclipTIE ROD |
53548-SL0-A01 |
US $3.99 |
||
|
9
|
9
57450-SL5-A53
Sensor assy
|
57450-SL5-A53 |
— | ||
|
10
|
10
57455-SL5-A52
Sensor assy
|
57455-SL5-A52 |
— | ||
|
11
|
11
90127-SM4-951 BoltSENSOR LOCK(8X14) |
90127-SM4-951 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
12
|
12
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
13
|
13
90230-SB0-950 Bolt-washer6X12 (GREEN) |
90230-SB0-950 |
US $1.26 |
||
|
14
|
14
90301-SD5-000 NutFLANGE, 6MM |
90301-SD5-000 |
from US $1.82 |
||
|
15
|
15
90321-SE0-000 NutUPPER BALL PIN, 10MM |
90321-SE0-000 |
US $2.60 |
||
|
17
|
17
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
17
|
17
94201-29220
Pin
|
94201-29220 |
— | ||
|
17
|
17
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
17
|
17
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
