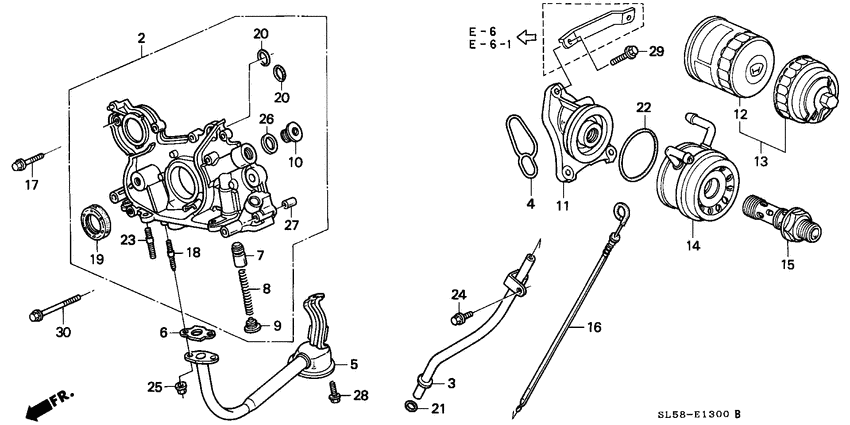

Oil pump Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
15100-PV1-000
Pump assy.
|
15100-PV1-000 |
— | ||
|
3
|
3
15200-PV1-000
Pipe comp
|
15200-PV1-000 |
— | ||
|
4
|
4
15205-PV1-003 PackingOIL FILTER BASE |
15205-PV1-003 |
from US $2.81 |
||
|
5
|
5
15220-PV1-000
Strainer comp.
1000049 - |
15220-PV1-000 |
— | ||
|
5
|
5
15220-PV0-000
Strainer comp.
00000000 - 1000048 |
15220-PV0-000 |
— | ||
|
6
|
6
15221-PT0-000
Packing
|
15221-PT0-000 |
— | ||
| replacement | |||||
|
6
|
6
15221-P5K-004 PackingOIL STRAINER |
15221-P5K-004 |
from US $3.03 |
||
|
7
|
7
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
8
|
8
15232-PG6-000 SpringRELIEF VALVE |
15232-PG6-000 |
from US $2.65 |
||
|
9
|
9
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
10
|
10
15233-PK1-000 BoltSEALING, 20MM |
15233-PK1-000 |
from US $3.57 |
||
|
11
|
11
15301-PV0-003
Base
|
15301-PV0-003 |
— | ||
|
12
|
12
15400-PR3-004 CartridgeOIL FILTER (TOYO ROKI) |
15400-PR3-004 |
US $9.84 |
||
| replacement | |||||
|
12
|
12
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
12
|
12
15400-PR3-405 CartridgeOIL FILTER (TOYO ROKI) |
15400-PR3-405 |
US $18.72 |
||
|
12
|
12
15400-PR3-003
Cartridge
|
15400-PR3-003 |
— | ||
| replacement | |||||
|
12
|
12
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
13
|
13
15400-PR3-305
Cartridge set
|
15400-PR3-305 |
— | ||
| replacement | |||||
|
13
|
13
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
13
|
13
15400-PR3-406
Cartridge set
|
15400-PR3-406 |
— | ||
| replacement | |||||
|
13
|
13
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
14
|
14
15500-PV1-004
Cooler
|
15500-PV1-004 |
— | ||
|
14
|
14
15500-PV1-003 CoolerENGINE OIL (TSUCHIYA) |
15500-PV1-003 |
US $407.04 |
||
|
15
|
15
15560-PT6-003 BoltOIL COOLER CENTER |
15560-PT6-003 |
US $22.59 |
||
|
16
|
16
15650-PV1-003
Gauge comp.
|
15650-PV1-003 |
— | ||
|
17
|
17
90052-PK1-000 BoltFLANGE, 6X25 |
90052-PK1-000 |
US $2.49 |
||
|
18
|
18
90063-PC6-000
Bolt
|
90063-PC6-000 |
— | ||
|
19
|
19
91212-PT0-003
Oil seal
|
91212-PT0-003 |
— | ||
| replacement | |||||
|
19
|
19
91212-P0A-004 Oil seal40X52X7 (ARAI) |
91212-P0A-004 |
from US $8.75 |
||
|
20
|
20
91308-PK1-003 O-ring26.2X2.4 (NOK) |
91308-PK1-003 |
from US $1.93 |
||
|
21
|
21
91309-PJ7-010 O-ring11.5X3.5 |
91309-PJ7-010 |
from US $1.70 |
||
|
22
|
22
91316-PE7-730 O-ring62.4X3.1 |
91316-PE7-730 |
from US $4.22 |
||
|
23
|
23
92900-08025-1B BoltSTUD, 8X25 |
92900-08025-1B |
from US $0.74 |
||
|
24
|
24
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
94109-20000 WasherDRAIN PLUG, 20MM |
94109-20000 |
from US $0.43 |
||
|
27
|
27
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
28
|
28
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
29
|
29
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
30
|
30
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
||
