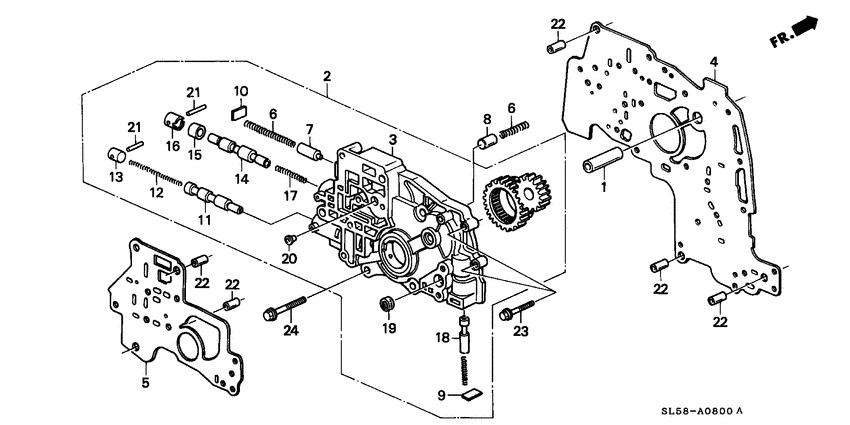

Oil pump body Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25145-PA9-010 ShaftOIL PUMP GEAR |
25145-PA9-010 |
US $11.05 |
||
|
2
|
2
27150-PW7-010
Body assy
|
27150-PW7-010 |
— | ||
|
3
|
3
27155-PW4-030
Body comp
|
27155-PW4-030 |
— | ||
|
4
|
4
27157-PW7-010
Plate
|
27157-PW7-010 |
— | ||
|
5
|
5
27212-PW4-010
Plate
|
27212-PW4-010 |
— | ||
|
6
|
6
27255-PY4-000
Spring
|
27255-PY4-000 |
— | ||
|
7
|
7
27256-PA9-000
Valve
|
27256-PA9-000 |
— | ||
|
8
|
8
27256-639-000
Valve
|
27256-639-000 |
— | ||
|
9
|
9
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM |
27263-PA9-000 |
US $2.66 |
||
|
10
|
10
27271-PA9-000 SeatVALVE SPRING, 1.8MM |
27271-PA9-000 |
US $2.52 |
||
|
11
|
11
27626-PW4-000
Valve
|
27626-PW4-000 |
— | ||
|
12
|
12
27627-PW4-000
Spring
|
27627-PW4-000 |
— | ||
|
13
|
13
27628-PK4-000 CapLOCK UP TIMING |
27628-PK4-000 |
US $3.08 |
||
|
14
|
14
27641-PW4-000
Valve
|
27641-PW4-000 |
— | ||
|
15
|
15
27642-PW4-000
Sleeve
|
27642-PW4-000 |
— | ||
|
16
|
16
27645-PL1-000 CapLOCK UP CONTROL |
27645-PL1-000 |
US $3.78 |
||
|
18
|
18
27655-PC9-950
Valve
|
27655-PC9-950 |
— | ||
|
19
|
19
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
20
|
20
27750-PW4-000
Filter
|
27750-PW4-000 |
— | ||
|
21
|
21
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
22
|
22
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
23
|
23
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
24
|
24
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
