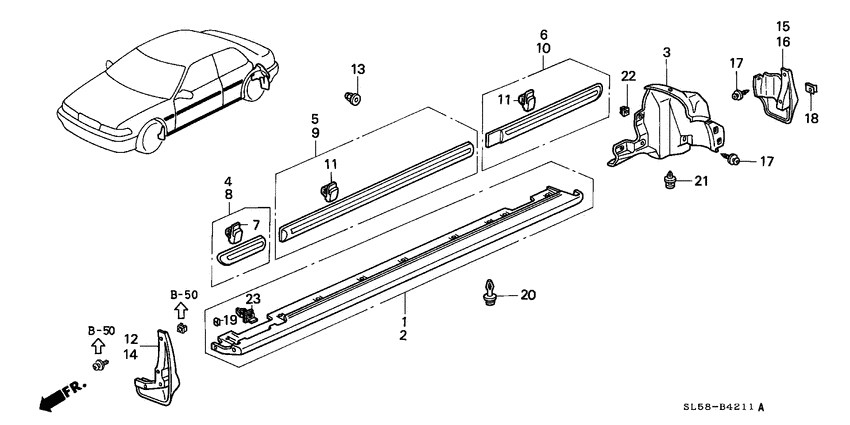

Protector Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71800-SL5-A00
Garnish assy
|
71800-SL5-A00 |
— | ||
|
2
|
2
71850-SL5-A00
Garnish assy
|
71850-SL5-A00 |
— | ||
|
3
|
3
74559-SL5-A00
Cover
|
74559-SL5-A00 |
— | ||
|
4
|
4
75301-SL5-003
Protector comp
|
75301-SL5-003 |
— | ||
|
5
|
5
75302-SL5-013
Protector comp
|
75302-SL5-013 |
— | ||
|
6
|
6
75303-SL5-013
Protector comp
|
75303-SL5-013 |
— | ||
|
7
|
7
75305-SH2-003 ClipSIDE PROTECTOR |
75305-SH2-003 |
US $3.70 |
||
|
8
|
8
75321-SL5-003
Protector comp
|
75321-SL5-003 |
— | ||
|
9
|
9
75322-SL5-013
Protector comp
|
75322-SL5-013 |
— | ||
|
10
|
10
75323-SL5-013
Protector comp
|
75323-SL5-013 |
— | ||
|
11
|
11
75328-SH3-A01 Clip AMOLDING |
75328-SH3-A01 |
US $2.03 |
||
|
12
|
12
75800-SL5-A01
Mudguard
|
75800-SL5-A01 |
— | ||
|
13
|
13
75807-671-010 NutSIDE PROTECTOR (BLACK) |
75807-671-010 |
US $3.08 |
||
|
14
|
14
75810-SL5-A01 MudguardL. FR. |
75810-SL5-A01 |
US $32 |
||
|
15
|
15
75820-SL5-000
Mudguard
|
75820-SL5-000 |
— | ||
|
16
|
16
75830-SL5-000
Mudguard
|
75830-SL5-000 |
— | ||
|
17
|
17
90139-SE0-003 Screw-washer5X25 |
90139-SE0-003 |
from US $2.19 |
||
|
18
|
18
90324-SM4-000 NutSUSPENSION, 5MM |
90324-SM4-000 |
US $2.66 |
||
|
19
|
19
90331-SD5-003 NutSPRING, 5MM |
90331-SD5-003 |
from US $2 |
||
|
20
|
20
90505-SM4-003 ClipGARNISH |
90505-SM4-003 |
US $2.89 |
||
| replacement | |||||
|
20
|
20
90505-SX0-003 ClipGARNISH |
90505-SX0-003 |
US $2.89 |
||
|
21
|
21
90675-SL4-003 ClipSPLASH SHIELD |
90675-SL4-003 |
US $2.31 |
||
|
22
|
22
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
23
|
23
91513-SM4-000 ClipSIDE SILL UPPER GARNISH |
91513-SM4-000 |
from US $2.38 |
||
