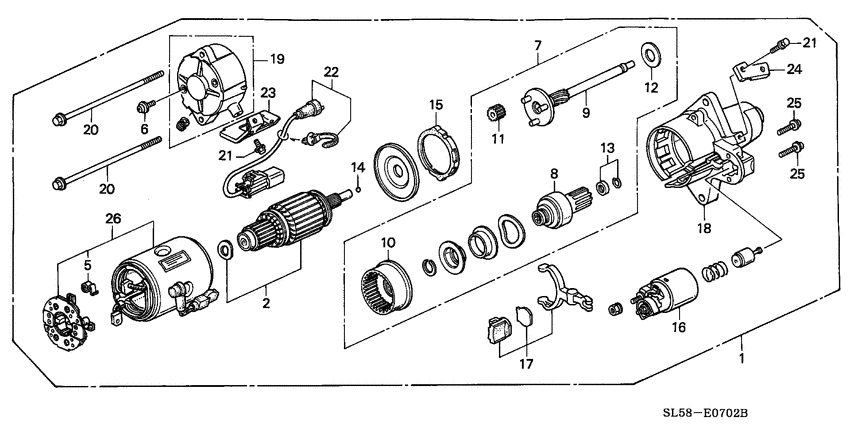

Starter motor (MITSUBISHI) Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-PV1-A04
Motor assy.
|
31200-PV1-A04 |
— | ||
|
2
|
2
31201-PY3-014
Rotor comp
|
31201-PY3-014 |
— | ||
|
5
|
5
31204-PY3-004
Spring
|
31204-PY3-004 |
— | ||
|
6
|
6
31205-PY3-004 ScrewFLANGE |
31205-PY3-004 |
US $1.40 |
||
|
7
|
7
31210-PV1-A03
Shaft assy. set
|
31210-PV1-A03 |
— | ||
|
8
|
8
31211-PV1-A03
Clutch
|
31211-PV1-A03 |
— | ||
|
9
|
9
31213-PV1-A03
Gear assy.
|
31213-PV1-A03 |
— | ||
|
10
|
10
31214-PY3-004
Gear assy.
|
31214-PY3-004 |
— | ||
|
11
|
11
31215-PY3-004 Gear assy.PLANETARY |
31215-PY3-004 |
from US $14.72 |
||
|
12
|
12
31216-PY3-004
Washer
|
31216-PY3-004 |
— | ||
|
13
|
13
31217-PY3-004
Stopper set
|
31217-PY3-004 |
— | ||
|
14
|
14
31218-PY3-004 BallSTEEL |
31218-PY3-004 |
from US $1.26 |
||
|
15
|
15
31219-PY3-004
Packing
|
31219-PY3-004 |
— | ||
|
16
|
16
31220-PV1-A03
Switch assy
|
31220-PV1-A03 |
— | ||
|
17
|
17
31231-PY3-004
Lever set
|
31231-PY3-004 |
— | ||
|
20
|
20
31243-PV1-A03
Bolt a
|
31243-PV1-A03 |
— | ||
|
21
|
21
31246-PV1-A03
Bolt
|
31246-PV1-A03 |
— | ||
|
22
|
22
31290-PV1-A04
Harness assy
|
31290-PV1-A04 |
— | ||
|
23
|
23
31292-PV1-A04
Stay
|
31292-PV1-A04 |
— | ||
|
24
|
24
31296-PV1-A03
Stay
|
31296-PV1-A03 |
— | ||
|
25
|
25
90011-ZG5-003 ScrewFLANGE, 6X23 |
90011-ZG5-003 |
US $4.68 |
||
|
26
|
26
31260-PV1-004
Brush holder set
|
31260-PV1-004 |
— |
