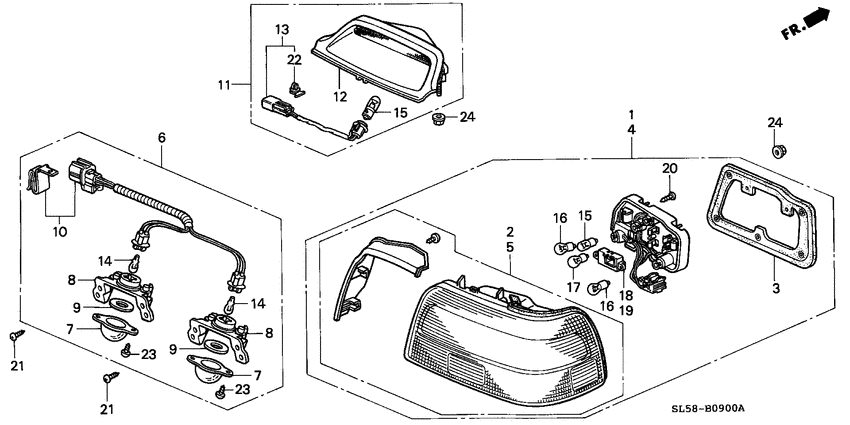

Taillight Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33500-SL5-003
Taillight assy.
|
33500-SL5-003 |
— | ||
|
2
|
2
33501-SL5-003
Lamp unit
|
33501-SL5-003 |
— | ||
|
3
|
3
33502-SL5-A01
Gasket
|
33502-SL5-A01 |
— | ||
|
4
|
4
33550-SL5-003
Taillight assy.
00000000 - 0C100124 |
33550-SL5-003 |
— | ||
|
4
|
4
33550-SL5-013
Taillight assy.
0C100125 - |
33550-SL5-013 |
— | ||
|
5
|
5
33502-SL5-003
Lamp unit
|
33502-SL5-003 |
— | ||
|
6
|
6
34100-SL5-A01
Light assy
|
34100-SL5-A01 |
— | ||
|
7
|
7
34101-SH3-A01 Lens |
34101-SH3-A01 |
US $9.92 |
||
|
8
|
8
34102-SH3-A01 Housing |
34102-SH3-A01 |
US $12.73 |
||
|
9
|
9
34103-SH3-A01 Packing |
34103-SH3-A01 |
US $3.40 |
||
|
10
|
10
34104-SP0-A01
Cord comp
|
34104-SP0-A01 |
— | ||
|
11
|
11
34270-SL5-A01
Lamp assy.
|
34270-SL5-A01 |
— | ||
|
12
|
12
34271-SL5-A01
Lamp unit
|
34271-SL5-A01 |
— | ||
|
14
|
14
34901-SE3-003 Bulb12V 8W |
34901-SE3-003 |
US $2.10 |
||
|
15
|
15
34903-SF1-A01 Bulb12V 45CP |
34903-SF1-A01 |
from US $4.66 |
||
|
16
|
16
34906-SA0-003 Bulb12V 27W/5W |
34906-SA0-003 |
US $3.08 |
||
|
17
|
17
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
18
|
18
37540-SM4-A01
Sensor, Stop Lamp Failure
00000000 - 0C100124 |
37540-SM4-A01 |
— | ||
|
18
|
18
37540-SM4-901 SensorSTOP LAMP FAILURE 0C100125 - |
37540-SM4-901 |
US $69.41 |
||
|
19
|
19
37540-SM4-003 SensorSTOP LAMP FAILURE |
37540-SM4-003 |
US $51.71 |
||
|
20
|
20
90125-SL5-A01
Screw
|
90125-SL5-A01 |
— | ||
|
21
|
21
90146-SL3-003
Screw
|
90146-SL3-003 |
— | ||
|
22
|
22
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
23
|
23
93911-24120 ScrewTAPPING, 4X10 (PO) |
93911-24120 |
from US $0.37 |
||
|
24
|
24
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
