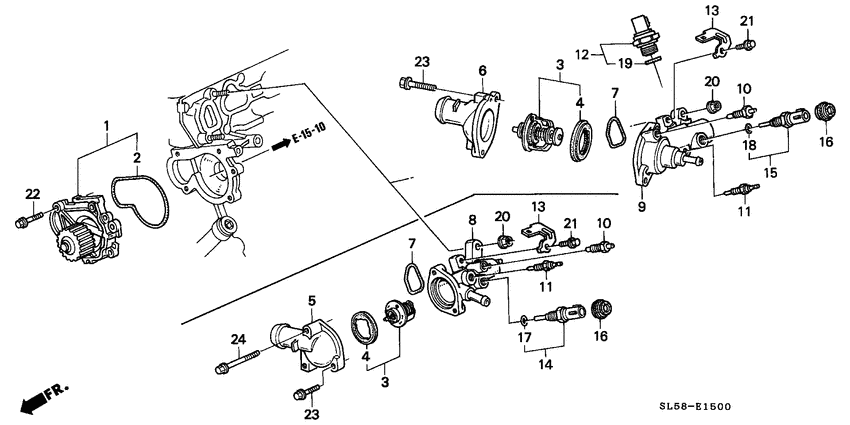

Water pump Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-PV1-A01 Pump compWATER (YAMADA) |
19200-PV1-A01 |
US $92.80 |
||
|
2
|
2
19222-PV0-300 PackingWATER PUMP |
19222-PV0-300 |
US $3.22 |
||
|
3
|
3
19301-PV0-305
Thermostat assy
|
19301-PV0-305 |
— | ||
|
3
|
3
19301-PV0-306
Thermostat assy
|
19301-PV0-306 |
— | ||
|
4
|
4
19305-PV0-000 RubberTHERMOSTAT MOUNTING |
19305-PV0-000 |
US $3.57 |
||
|
5
|
5
19311-PV0-000
Cover
|
19311-PV0-000 |
— | ||
|
7
|
7
19313-PV0-000 PackingTHERMOSTAT CASE |
19313-PV0-000 |
US $2.03 |
||
|
8
|
8
19320-PV0-J00
Case comp.
|
19320-PV0-J00 |
— | ||
|
10
|
10
19516-PC1-000 BoltBREATHING WATER |
19516-PC1-000 |
from US $5.62 |
||
|
11
|
11
37750-PH2-014 Thermo unitDENSO |
37750-PH2-014 |
US $45.03 |
||
|
13
|
13
37845-PV0-000
Stay
|
37845-PV0-000 |
— | ||
|
14
|
14
37870-PJ7-003 Sensor assy, WATER TEMP (TW5) (MATSUSHITA) |
37870-PJ7-003 |
from US $51.88 |
||
|
16
|
16
37872-PK1-000 CoverTW SENSOR |
37872-PK1-000 |
US $4.34 |
||
|
17
|
17
91307-PJ7-003
O-ring
|
91307-PJ7-003 |
— | ||
| replacement | |||||
|
17
|
17
91307-PK2-005 O-ring9.5X1.5(HONDA KIKAKI) |
91307-PK2-005 |
from US $1.63 |
||
|
20
|
20
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
22
|
22
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
23
|
23
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
24
|
24
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
