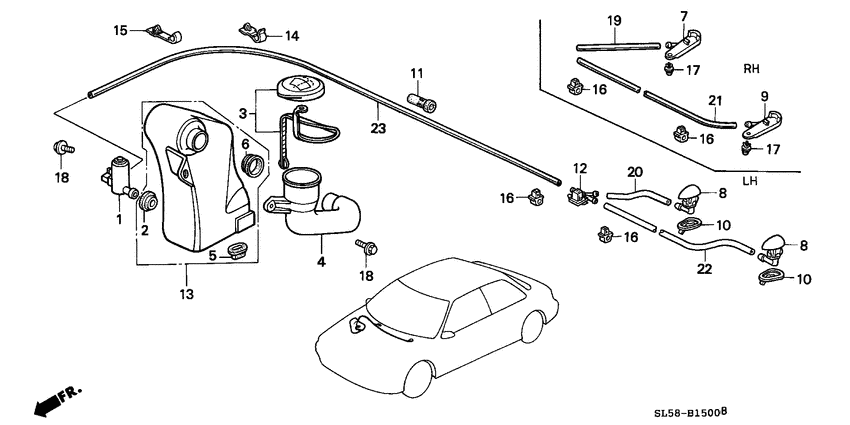

Windshield washer Diagram Honda VIGOR
- Year
- 1993
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38512-SB0-922 MotorWASHER (MITSUBA) |
38512-SB0-922 |
US $72.08 |
||
|
2
|
2
38519-SB0-003 BushWASHER TANK (MITSUBA) |
38519-SB0-003 |
from US $2.97 |
||
|
3
|
3
76802-SL4-013 Cap unitMOUTH |
76802-SL4-013 |
US $6.84 |
||
|
4
|
4
76805-SL4-003
Hose
|
76805-SL4-003 |
— | ||
|
5
|
5
76808-SL4-003
Grommet
|
76808-SL4-003 |
— | ||
|
6
|
6
76809-SL4-003
Seal
|
76809-SL4-003 |
— | ||
|
7
|
7
76810-SL4-003 NozzleWINDSHIELD WASHER (DRIVER SIDE) |
76810-SL4-003 |
US $14.85 |
||
|
9
|
9
76815-SL4-003 NozzleWINDSHIELD WASHER (PASSENGER SIDE) |
76815-SL4-003 |
US $14.21 |
||
|
11
|
11
76820-SL4-003 GrommetTUBE WASHER |
76820-SL4-003 |
US $4.34 |
||
|
12
|
12
76830-SM4-003 Joint yWASHER |
76830-SM4-003 |
from US $2.90 |
||
|
13
|
13
76841-SL4-003
Tank
|
76841-SL4-003 |
— | ||
|
14
|
14
90673-SK7-003
Clip
|
90673-SK7-003 |
— | ||
|
15
|
15
91523-SL5-003 ClipWASHER TUBE |
91523-SL5-003 |
US $2.31 |
||
|
16
|
16
91523-SM4-000 ClipWASHER TUBE (BLACK) |
91523-SM4-000 |
US $1.75 |
||
|
17
|
17
91524-SK7-000 ClipWASHER NOZZLE |
91524-SK7-000 |
US $2.15 |
||
|
18
|
18
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
19
|
19
95003-070-127-0 TubeVINYL, 4X7X120 (95003-07001-70M) |
95003-070-127-0 |
US $0.52 |
||
|
21
|
21
95003-070-717-0 TubeVINYL, 4X7X710 (95003-07001-70M) |
95003-070-717-0 |
US $1.55 |
||
|
23
|
23
95003-071-207-0 TubeVINYL, 4X7X1200 (95003-07003-70M) |
95003-071-207-0 |
US $2.66 |
