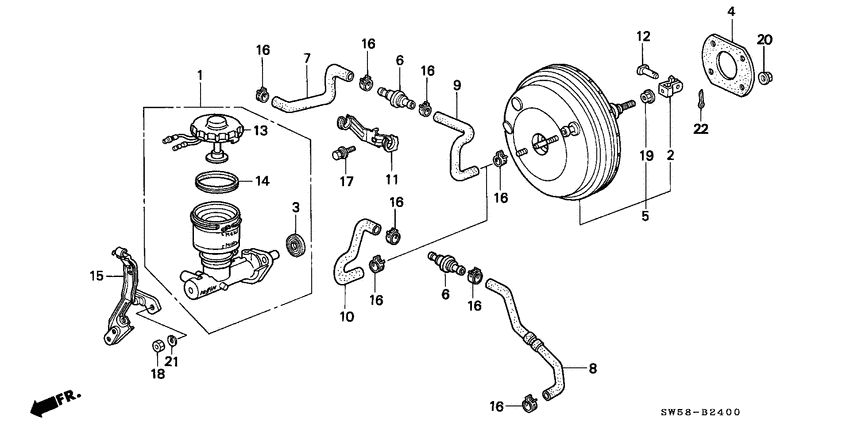

Brake master cylinder (L5; -'96) Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SM4-G53
Cylinder assy.
|
46100-SM4-G53 |
— | ||
|
2
|
2
46151-SE0-003 YokePUSH ROD(NISSIN) |
46151-SE0-003 |
US $18.07 |
||
|
3
|
3
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
4
|
4
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
5
|
5
46400-SW3-951
Power assy.
|
46400-SW3-951 |
— | ||
|
6
|
6
46403-SW5-003
Valve comp.
|
46403-SW5-003 |
— | ||
|
7
|
7
46404-SL5-A01
Tube a
|
46404-SL5-A01 |
— | ||
|
9
|
9
46405-SW5-A00
Tube b
|
46405-SW5-A00 |
— | ||
|
11
|
11
46407-SE0-010
Clamp
|
46407-SE0-010 |
— | ||
|
12
|
12
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
13
|
13
46662-SM4-003 Cap comp.RESERVE TANK |
46662-SM4-003 |
US $47.74 |
||
|
14
|
14
46669-SE3-003 SealRESERVE TANK |
46669-SE3-003 |
US $7.98 |
||
|
15
|
15
46674-SL5-950
Bracket
|
46674-SL5-950 |
— | ||
|
16
|
16
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
17
|
17
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
18
|
18
94001-080-800-5 NutHEX., 8MM |
94001-080-800-5 |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
20
|
20
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
21
|
21
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
22
|
22
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
