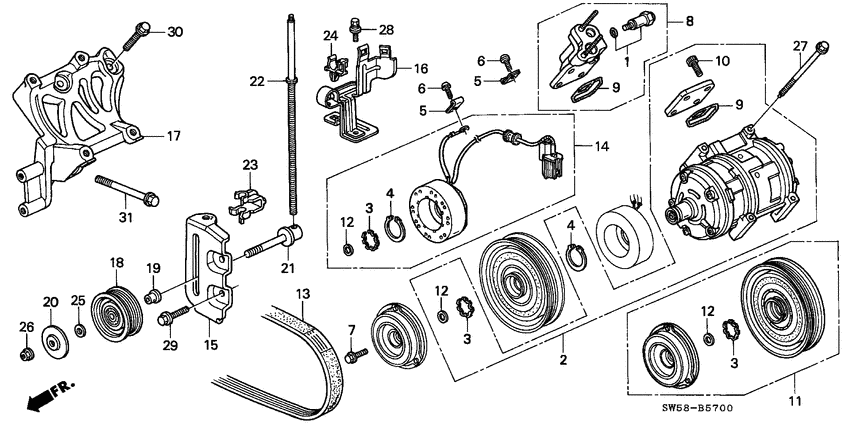

Compressor (L5) Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-P45-G01
Valve sub assy.
|
38801-P45-G01 |
— | ||
|
2
|
2
38810-P45-G02 Compressor comp.DENSO |
38810-P45-G02 |
US $788.48 |
||
|
3
|
3
38812-PH1-003 Ring bSNAP |
38812-PH1-003 |
US $4.06 |
||
|
4
|
4
38812-671-003 Ring aSNAP |
38812-671-003 |
from US $3.29 |
||
|
5
|
5
38816-PH1-003 ClipLEAD WIRE |
38816-PH1-003 |
US $2.10 |
||
|
6
|
6
38827-PH7-003 Screw-washer5X8 |
38827-PH7-003 |
US $1.26 |
||
|
7
|
7
38829-PR3-003 BoltWASHER HEAD |
38829-PR3-003 |
US $1.61 |
||
|
8
|
8
38838-P1R-003
Valve
|
38838-P1R-003 |
— | ||
|
9
|
9
38839-PR7-A01 O-ring |
38839-PR7-A01 |
US $7 |
||
|
10
|
10
38840-PC1-003 Bolt b |
38840-PC1-003 |
US $3.50 |
||
|
11
|
11
38900-P1R-003
Clutch set
|
38900-P1R-003 |
— | ||
|
12
|
12
38912-PH1-N01 Plate setWASHER |
38912-PH1-N01 |
US $4.72 |
||
|
13
|
13
38920-P1R-004
Belt
|
38920-P1R-004 |
— | ||
| replacement | |||||
|
13
|
13
31110-PH2-J04
Belt,acg
|
31110-PH2-J04 |
— | ||
|
13
|
13
38920-P1R-003 BeltCOMPRESSOR (BANDO) |
38920-P1R-003 |
US $35.20 |
||
|
14
|
14
38924-P1R-003
Stator set
|
38924-P1R-003 |
— | ||
|
15
|
15
38926-P1R-000
Stay
|
38926-P1R-000 |
— | ||
|
16
|
16
38927-P1R-J00
Stay
|
38927-P1R-J00 |
— | ||
|
17
|
17
38930-P1R-A00
Bracket
|
38930-P1R-A00 |
— | ||
|
18
|
18
38942-P1R-000 Pulley compIDLE |
38942-P1R-000 |
US $40.06 |
||
|
19
|
19
38944-PV1-000 CollarIDLE PULLEY |
38944-PV1-000 |
US $6.16 |
||
|
20
|
20
38945-PM3-000 CoverBEARING |
38945-PM3-000 |
US $3.58 |
||
|
21
|
21
38946-PM3-000 BoltIDLE PULLEY (10X39) |
38946-PM3-000 |
US $4.34 |
||
|
22
|
22
38948-PV0-010
Bolt
|
38948-PV0-010 |
— | ||
|
23
|
23
38949-PV0-010 ClipBOLT |
38949-PV0-010 |
US $3.57 |
||
|
24
|
24
80387-SW5-A01 ClipRECEIVER PIPE |
80387-SW5-A01 |
US $1.75 |
||
|
25
|
25
90017-PE0-000 Washer10MM |
90017-PE0-000 |
US $8.31 |
||
|
26
|
26
90058-PG6-000 Nut-washer10MM |
90058-PG6-000 |
US $3.34 |
||
|
27
|
27
90380-PV3-000
Bolt
|
90380-PV3-000 |
— | ||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
29
|
29
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
30
|
30
95701-100-300-8 BoltFLANGE, 10X30 |
95701-100-300-8 |
from US $0.81 |
||
|
31
|
31
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
