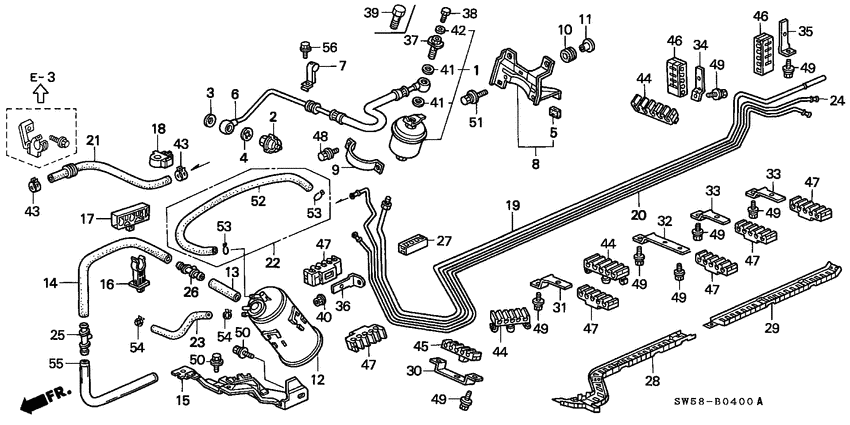

Fuel pipe (L5; LH) Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-931
Strainer set
|
16010-ST5-931 |
— | ||
|
2
|
2
16680-PE2-003 Damper assy.PULSATION |
16680-PE2-003 |
US $39.30 |
||
|
3
|
3
16704-PD1-003
Washer
|
16704-PD1-003 |
— | ||
|
4
|
4
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
5
|
5
16712-SF4-J30 CushionFUEL STRAINER |
16712-SF4-J30 |
US $1.96 |
||
|
6
|
6
16720-P1R-A01
Hose comp.
|
16720-P1R-A01 |
— | ||
|
7
|
7
16746-P1R-A00
Clamp
|
16746-P1R-A00 |
— | ||
|
8
|
8
16918-SW5-A30
Stay
|
16918-SW5-A30 |
— | ||
|
9
|
9
16919-SW3-930
Band
|
16919-SW3-930 |
— | ||
|
10
|
10
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
11
|
11
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $4.47 |
||
|
12
|
12
17300-SL5-A31
Canister assy
|
17300-SL5-A31 |
— | ||
|
13
|
13
17356-SW5-A30
Tube
|
17356-SW5-A30 |
— | ||
|
14
|
14
17357-SW5-A31
Tube
|
17357-SW5-A31 |
— | ||
|
15
|
15
17358-SW5-A30
Bracket comp.
|
17358-SW5-A30 |
— | ||
|
16
|
16
17359-SL5-A02
Clamp
|
17359-SL5-A02 |
— | ||
|
17
|
17
17361-SL5-023
Clamp
|
17361-SL5-023 |
— | ||
|
18
|
18
17556-SL4-023 ClipFUEL PIPE (BLACK) |
17556-SL4-023 |
US $3.11 |
||
|
19
|
19
17700-SW5-A30
Pipe comp
|
17700-SW5-A30 |
— | ||
|
20
|
20
17720-SW5-A30
Pipe comp
|
17720-SW5-A30 |
— | ||
|
21
|
21
17723-SL5-A30
Hose
|
17723-SL5-A30 |
— | ||
|
22
|
22
17724-SW5-Y30
Tube assy
|
17724-SW5-Y30 |
— | ||
|
23
|
23
17725-SW5-Y30
Hose assy
|
17725-SW5-Y30 |
— | ||
|
24
|
24
17740-SW5-A30
Pipe comp
|
17740-SW5-A30 |
— | ||
|
25
|
25
17742-SL5-A32
Joint
|
17742-SL5-A32 |
— | ||
|
26
|
26
17743-SW5-A31
Joint
|
17743-SW5-A31 |
— | ||
|
27
|
27
17748-SL5-003
Clamp c
|
17748-SL5-003 |
— | ||
|
28
|
28
17752-SW3-000
Cover
|
17752-SW3-000 |
— | ||
|
29
|
29
17753-SW5-930
Cover
|
17753-SW5-930 |
— | ||
|
30
|
30
17761-SW3-000
Stay a
|
17761-SW3-000 |
— | ||
|
31
|
31
17762-SL4-000
Stay b
|
17762-SL4-000 |
— | ||
|
32
|
32
17763-SL4-000
Stay c
|
17763-SL4-000 |
— | ||
|
33
|
33
17764-SL4-000
Stay d
|
17764-SL4-000 |
— | ||
|
34
|
34
17765-SW3-000
Stay e
|
17765-SW3-000 |
— | ||
|
35
|
35
17766-SW3-000
Stay f
|
17766-SW3-000 |
— | ||
|
36
|
36
17767-SW5-A00
Stay g
|
17767-SW5-A00 |
— | ||
|
37
|
37
90008-PD6-010 BoltBANJO, 12MM |
90008-PD6-010 |
US $16.42 |
||
| replacement | |||||
|
37
|
37
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
38
|
38
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
38
|
38
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
40
|
40
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
41
|
41
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
42
|
42
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
43
|
43
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
44
|
44
91592-SR3-J32 Clamp hFUEL PIPE (SANOU) |
91592-SR3-J32 |
US $3.50 |
||
|
45
|
45
91594-SR3-J32 Clamp fFUEL PIPE (SANOU) |
91594-SR3-J32 |
US $5.05 |
||
|
46
|
46
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.54 |
||
|
47
|
47
91599-SV4-003 Clamp aFUEL PIPE |
91599-SV4-003 |
US $5.60 |
||
|
48
|
48
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
49
|
49
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
50
|
50
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
51
|
51
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
52
|
52
95001-554-006-0
Tube
|
95001-554-006-0 |
— | ||
|
53
|
53
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
54
|
54
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
55
|
55
95003-400-256-0 TubeVINYL, 12X16X250 (95003-40001-60M) |
95003-400-256-0 |
US $2.66 |
||
|
56
|
56
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
