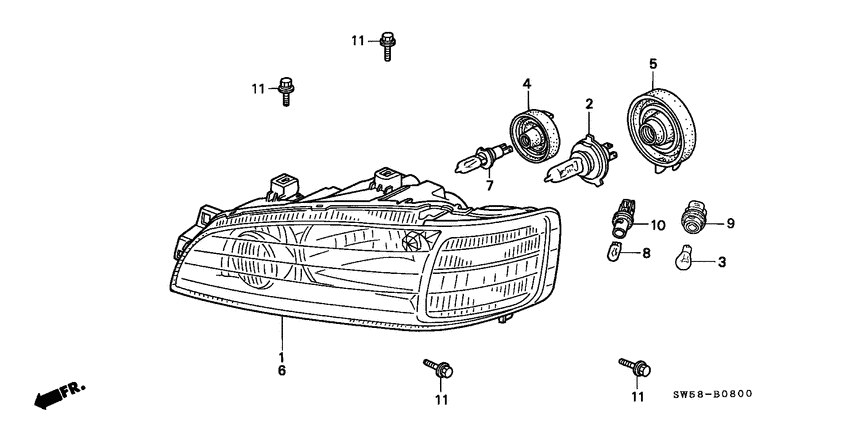

Headlight Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33101-SW5-A01
Headlight unit
|
33101-SW5-A01 |
— | ||
|
2
|
2
33111-SR3-A11
Bulb
|
33111-SR3-A11 |
— | ||
|
2
|
2
33111-SR3-A01 BulbHEADLIGHT (HB2) (12V 60/55W) (STANLEY) |
33111-SR3-A01 |
US $25.60 |
||
|
4
|
4
33126-SL9-003
Cover
|
33126-SL9-003 |
— | ||
|
5
|
5
33126-SS0-003 CoverRUBBER |
33126-SS0-003 |
from US $12.12 |
||
|
6
|
6
33151-SW5-A01
Headlight unit
|
33151-SW5-A01 |
— | ||
|
7
|
7
33165-SM4-003 Bulb12V 55W H3C) (STANLEY |
33165-SM4-003 |
US $14.08 |
||
|
8
|
8
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
10
|
10
34303-SS1-003
Socket comp
|
34303-SS1-003 |
— | ||
|
11
|
11
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
11
|
11
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
