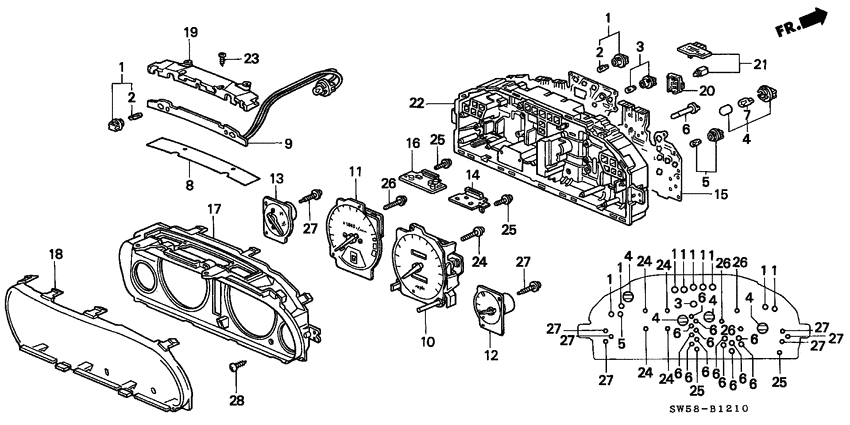

Meter components (L5) Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-004 Bulb & socket14V 1.4W) (DENSO) (BASE:BLACK |
35505-SA5-004 |
US $3.50 |
||
|
2
|
2
35506-SA5-004
Bulb
|
35506-SA5-004 |
— | ||
| replacement | |||||
|
2
|
2
35506-SA5-003 Bulb14V 1.4W |
35506-SA5-003 |
from US $1.85 |
||
|
3
|
3
35506-SX0-A01
Socket assy
|
35506-SX0-A01 |
— | ||
|
4
|
4
37102-SW5-003
Socket assy
|
37102-SW5-003 |
— | ||
|
5
|
5
37103-SR3-004
Socket assy
|
37103-SR3-004 |
— | ||
|
6
|
6
37103-ST7-003
Socket assy
|
37103-ST7-003 |
— | ||
|
7
|
7
37237-SA5-004 Bulb14V 3.4W) (DENSO |
37237-SA5-004 |
US $4.45 |
||
| replacement | |||||
|
7
|
7
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
8
|
8
78117-SW5-A01
Lens
|
78117-SW5-A01 |
— | ||
|
9
|
9
78118-SW5-A01
Panel
|
78118-SW5-A01 |
— | ||
|
10
|
10
78120-SW5-Y01
Speedometer assy
|
78120-SW5-Y01 |
— | ||
|
11
|
11
78125-SW5-A01
Tachometer assy.
|
78125-SW5-A01 |
— | ||
|
12
|
12
78130-SW5-A01
Meter assy
|
78130-SW5-A01 |
— | ||
|
13
|
13
78135-SW5-A01
Meter assy
|
78135-SW5-A01 |
— | ||
|
14
|
14
78140-SW5-A01
Amplifier assy
|
78140-SW5-A01 |
— | ||
|
15
|
15
78146-SW5-A01
Panel
|
78146-SW5-A01 |
— | ||
|
16
|
16
78150-SW5-J01
Amplifier assy
|
78150-SW5-J01 |
— | ||
|
17
|
17
78155-SW5-Y01
Visor assy
|
78155-SW5-Y01 |
— | ||
|
18
|
18
78156-SW5-A01 LensMETER |
78156-SW5-A01 |
US $29.18 |
||
|
19
|
19
78166-SW5-J01
Case
|
78166-SW5-J01 |
— | ||
|
20
|
20
78170-SX0-003
Amplifier assy
|
78170-SX0-003 |
— | ||
|
21
|
21
78190-SW5-N81
Indicator assy.
|
78190-SW5-N81 |
— | ||
|
22
|
22
78235-SW5-J01
Case assy.
|
78235-SW5-J01 |
— | ||
|
23
|
23
90131-ST7-003 ScrewTAPPING |
90131-ST7-003 |
US $1.47 |
||
|
24
|
24
90132-SR3-004
Screw-washer
|
90132-SR3-004 |
— | ||
|
25
|
25
90133-ST7-003 ScrewWAVE WASHER |
90133-ST7-003 |
US $1.61 |
||
|
26
|
26
90135-SH2-004
Screw-washer
|
90135-SH2-004 |
— | ||
|
27
|
27
90137-ST7-003
Screw
|
90137-ST7-003 |
— | ||
|
28
|
28
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
