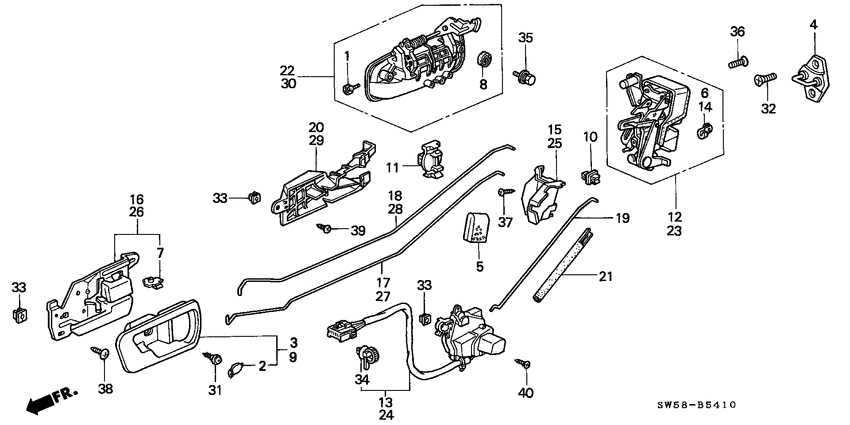

Rear door locks Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72119-SM1-003
Stopper a
|
72119-SM1-003 |
— | ||
|
2
|
2
72122-SR2-003ZE
Cap
|
72122-SR2-003ZE |
— | ||
|
2
|
2
72122-SR2-003ZC
Cap
|
72122-SR2-003ZC |
— | ||
|
3
|
3
72125-ST7-003ZB
Case assy.
|
72125-ST7-003ZB |
— | ||
|
3
|
3
72125-ST7-003ZD
Case assy.
|
72125-ST7-003ZD |
— | ||
|
4
|
4
72135-SR3-003
Striker assy
|
72135-SR3-003 |
— | ||
|
5
|
5
72138-SL4-000
Cushion
|
72138-SL4-000 |
— | ||
|
6
|
6
72139-SR0-A01
Snap
|
72139-SR0-A01 |
— | ||
|
7
|
7
72139-SR3-003 FastenerNATURAL |
72139-SR3-003 |
US $2.38 |
||
|
8
|
8
72143-ST7-003
Packing
|
72143-ST7-003 |
— | ||
|
9
|
9
72165-ST7-003ZD
Case assy.
|
72165-ST7-003ZD |
— | ||
|
10
|
10
72175-SH3-003 HolderDOOR LOCK ROD |
72175-SH3-003 |
US $2.37 |
||
|
11
|
11
72175-SH3-901 HolderDOOR LOCK ROD |
72175-SH3-901 |
US $4.32 |
||
|
12
|
12
72610-SW5-003
Lock assy
|
72610-SW5-003 |
— | ||
|
13
|
13
72615-SW5-003
Actuator assy
|
72615-SW5-003 |
— | ||
|
14
|
14
72616-SM4-003
Snap
|
72616-SM4-003 |
— | ||
|
15
|
15
72617-SW5-A01
Protector
|
72617-SW5-A01 |
— | ||
|
16
|
16
72620-SW5-003
Handle assy
|
72620-SW5-003 |
— | ||
|
17
|
17
72631-SW5-003
Rod
|
72631-SW5-003 |
— | ||
|
18
|
18
72632-SW5-003
Rod
|
72632-SW5-003 |
— | ||
|
19
|
19
72633-SW5-003
Rod
|
72633-SW5-003 |
— | ||
|
20
|
20
72639-SV4-A00
Protector
|
72639-SV4-A00 |
— | ||
|
21
|
21
72639-SW5-A01
Protector
|
72639-SW5-A01 |
— | ||
|
22
|
22
72640-SW5-003ZF
Handle assy
|
72640-SW5-003ZF |
— | ||
|
22
|
22
72640-SW5-003ZH
Handle assy
|
72640-SW5-003ZH |
— | ||
|
22
|
22
72640-SW5-003ZB
Handle assy
|
72640-SW5-003ZB |
— | ||
|
22
|
22
72640-SW5-003ZG
Handle assy
|
72640-SW5-003ZG |
— | ||
|
22
|
22
72640-SW5-003ZK
Handle assy
|
72640-SW5-003ZK |
— | ||
|
22
|
22
72640-SW5-003ZA
Handle assy
|
72640-SW5-003ZA |
— | ||
|
23
|
23
72650-SW5-003
Lock assy
|
72650-SW5-003 |
— | ||
|
24
|
24
72655-SW5-003
Actuator assy
|
72655-SW5-003 |
— | ||
|
25
|
25
72657-SW5-A01
Protector
|
72657-SW5-A01 |
— | ||
|
26
|
26
72660-SW5-003
Handle assy
|
72660-SW5-003 |
— | ||
|
27
|
27
72671-SW5-003
Rod
|
72671-SW5-003 |
— | ||
|
28
|
28
72672-SW5-003
Rod
|
72672-SW5-003 |
— | ||
|
29
|
29
72679-SV4-A00
Protector
|
72679-SV4-A00 |
— | ||
|
30
|
30
72680-SW5-003ZK
Handle assy
|
72680-SW5-003ZK |
— | ||
|
30
|
30
72680-SW5-003ZF
Handle assy
|
72680-SW5-003ZF |
— | ||
|
30
|
30
72680-SW5-003ZH
Handle assy
|
72680-SW5-003ZH |
— | ||
|
30
|
30
72680-SW5-003ZB
Handle assy
|
72680-SW5-003ZB |
— | ||
|
30
|
30
72680-SW5-003ZG
Handle assy
|
72680-SW5-003ZG |
— | ||
|
30
|
30
72680-SW5-003ZA
Handle assy
|
72680-SW5-003ZA |
— | ||
|
31
|
31
90111-SA0-000 ScrewTAPPING, 4X8 |
90111-SA0-000 |
US $3.40 |
||
|
32
|
32
90120-SV4-000 BoltLOCK STRIKER |
90120-SV4-000 |
US $1.63 |
||
|
33
|
33
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
34
|
34
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
35
|
35
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
36
|
36
93600-060-280-H ScrewFLAT, 6X28 |
93600-060-280-H |
US $0.52 |
||
|
37
|
37
93901-22120 ScrewTAPPING, 3X8 |
93901-22120 |
from US $0.37 |
||
|
38
|
38
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
39
|
39
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
40
|
40
93903-45320 SCREW TAPPING |
93903-45320 |
US $0.37 |
