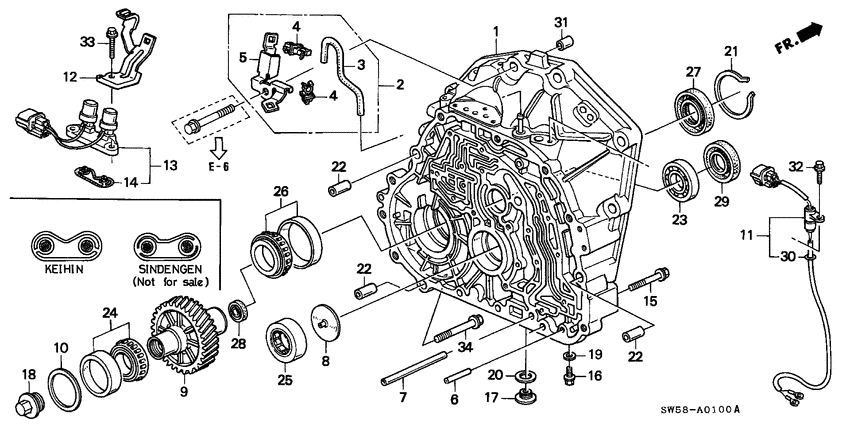

Torque converter housing (L5) Diagram Honda VIGOR
- Year
- 1995
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21110-P1V-000
Case comp.
|
21110-P1V-000 |
— | ||
|
2
|
2
21320-PW7-010
Tube assy
|
21320-PW7-010 |
— | ||
|
4
|
4
21399-PH8-010
Clamp
|
21399-PH8-010 |
— | ||
|
5
|
5
21399-PW7-000
Clamp
|
21399-PW7-000 |
— | ||
|
6
|
6
22743-PW4-000 Pipe8X40 |
22743-PW4-000 |
US $2.03 |
||
|
7
|
7
22744-PW4-000
Pipe
|
22744-PW4-000 |
— | ||
|
8
|
8
23225-PY4-000 PlateOIL GUIDE |
23225-PY4-000 |
US $3.43 |
||
|
9
|
9
23231-PW7-000
Shaft
|
23231-PW7-000 |
— | ||
|
10
|
10
23951-PW5-000
Shim k
|
23951-PW5-000 |
— | ||
|
10
|
10
23946-PW5-000
Shim f
|
23946-PW5-000 |
— | ||
|
10
|
10
23941-PW5-000
Shim a
|
23941-PW5-000 |
— | ||
|
10
|
10
23968-PW5-000
Shim ab
|
23968-PW5-000 |
— | ||
|
10
|
10
23963-PW5-000
Shim w
|
23963-PW5-000 |
— | ||
|
10
|
10
23958-PW5-000
Shim r
|
23958-PW5-000 |
— | ||
|
10
|
10
23953-PW5-000
Shim m
|
23953-PW5-000 |
— | ||
|
10
|
10
23948-PW5-000
Shim h
|
23948-PW5-000 |
— | ||
|
10
|
10
23943-PW5-000
Shim c
|
23943-PW5-000 |
— | ||
|
10
|
10
23970-PW5-000
Shim ad
|
23970-PW5-000 |
— | ||
|
10
|
10
23965-PW5-000
Shim y
|
23965-PW5-000 |
— | ||
|
10
|
10
23960-PW5-000
Shim t
|
23960-PW5-000 |
— | ||
|
10
|
10
23955-PW5-000
Shim o
|
23955-PW5-000 |
— | ||
|
10
|
10
23950-PW5-000
Shim j
|
23950-PW5-000 |
— | ||
|
10
|
10
23945-PW5-000
Shim e
|
23945-PW5-000 |
— | ||
|
10
|
10
23967-PW5-000
Shim aa
|
23967-PW5-000 |
— | ||
|
10
|
10
23962-PW5-000
Shim v
|
23962-PW5-000 |
— | ||
|
10
|
10
23957-PW5-000
Shim q
|
23957-PW5-000 |
— | ||
|
10
|
10
23952-PW5-000
Shim l
|
23952-PW5-000 |
— | ||
|
10
|
10
23947-PW5-000
Shim g
|
23947-PW5-000 |
— | ||
|
10
|
10
23942-PW5-000
Shim b
|
23942-PW5-000 |
— | ||
|
10
|
10
23969-PW5-000
Shim ac
|
23969-PW5-000 |
— | ||
|
10
|
10
23964-PW5-000
Shim x
|
23964-PW5-000 |
— | ||
|
10
|
10
23959-PW5-000
Shim s
|
23959-PW5-000 |
— | ||
|
10
|
10
23954-PW5-000
Shim n
|
23954-PW5-000 |
— | ||
|
10
|
10
23949-PW5-000
Shim i
|
23949-PW5-000 |
— | ||
|
10
|
10
23944-PW5-000
Shim d
|
23944-PW5-000 |
— | ||
|
10
|
10
23966-PW5-000
Shim z
|
23966-PW5-000 |
— | ||
|
10
|
10
23961-PW5-000
Shim u
|
23961-PW5-000 |
— | ||
|
10
|
10
23956-PW5-000
Shim p
|
23956-PW5-000 |
— | ||
|
11
|
11
28251-PW4-013
Harness
|
28251-PW4-013 |
— | ||
|
12
|
12
28252-PW7-000
Stay
|
28252-PW7-000 |
— | ||
|
13
|
13
28300-PW7-003
Solenoid assy.
|
28300-PW7-003 |
— | ||
|
13
|
13
28300-P1V-004
Solenoid assy.
|
28300-P1V-004 |
— | ||
|
14
|
14
28320-P1V-004
Filter assy
|
28320-P1V-004 |
— | ||
|
15
|
15
90023-PC9-910
Bolt
|
90023-PC9-910 |
— | ||
|
16
|
16
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
17
|
17
90025-PW4-000 BoltSPECIAL, 24MM |
90025-PW4-000 |
US $5.32 |
||
|
18
|
18
90082-PW8-000
Bolt
|
90082-PW8-000 |
— | ||
|
19
|
19
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
20
|
20
90473-PW4-000
Washer
|
90473-PW4-000 |
— | ||
|
21
|
21
90609-PW7-000
Ring
|
90609-PW7-000 |
— | ||
|
22
|
22
90705-PA9-000 Dowel pin14X25 |
90705-PA9-000 |
US $2.80 |
||
|
23
|
23
91001-PX4-004 BearingBALL, 40X68X9 (KOYO) |
91001-PX4-004 |
US $14.50 |
||
|
23
|
23
91001-PX4-003 BearingBALL, 40X68X9 (NTN) |
91001-PX4-003 |
US $13.72 |
||
|
24
|
24
91006-PG2-008 BearingTAPER, 40X68X19 (TOYO) |
91006-PG2-008 |
US $17.28 |
||
|
25
|
25
91102-PF0-003 BearingNEEDLE, 38.5X67X17 |
91102-PF0-003 |
US $15.36 |
||
|
26
|
26
91124-PW5-008 BearingTAPER, 32010X (TOYO) |
91124-PW5-008 |
US $24.96 |
||
|
27
|
27
91201-PW5-015 Oil seal50X70X11 (NOK) |
91201-PW5-015 |
US $11.48 |
||
|
28
|
28
91202-PW5-005
Oil seal
|
91202-PW5-005 |
— | ||
|
29
|
29
91207-P0X-004 Oil seal44X68X8 (ARAI) |
91207-P0X-004 |
US $6.84 |
||
|
29
|
29
91207-P0X-003 Oil seal44X68X8 (NOK) |
91207-P0X-003 |
from US $6.96 |
||
|
30
|
30
91307-PJ4-000 O-ring14.8X1.9 |
91307-PJ4-000 |
from US $4.44 |
||
|
31
|
31
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
32
|
32
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
33
|
33
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
34
|
34
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
