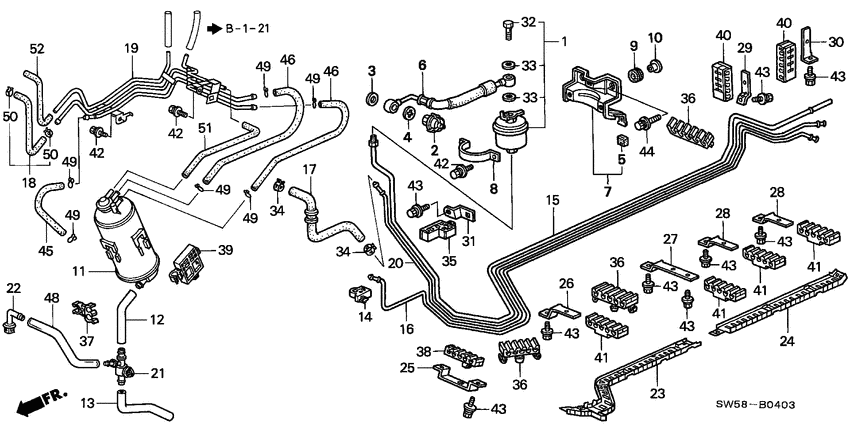

Fuel pipe (L5; THAILAND) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR THAILA
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-932
Strainer set
|
16010-ST5-932 |
— | ||
|
2
|
2
16680-PE2-003 Damper assy.PULSATION |
16680-PE2-003 |
US $39.30 |
||
|
3
|
3
16704-PD1-003
Washer
|
16704-PD1-003 |
— | ||
|
4
|
4
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
5
|
5
16712-SF4-J30 CushionFUEL STRAINER |
16712-SF4-J30 |
US $1.96 |
||
|
6
|
6
16720-PV3-003
Hose comp. b
|
16720-PV3-003 |
— | ||
|
7
|
7
16918-SW5-930
Stay
|
16918-SW5-930 |
— | ||
|
8
|
8
16919-SW3-930
Band
|
16919-SW3-930 |
— | ||
|
9
|
9
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
10
|
10
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $4.47 |
||
|
11
|
11
17300-SS0-A31
Canister assy
|
17300-SS0-A31 |
— | ||
|
12
|
12
17372-SW5-T00
Tube a
|
17372-SW5-T00 |
— | ||
|
13
|
13
17373-SW5-T00
Tube b
|
17373-SW5-T00 |
— | ||
|
14
|
14
17556-SL4-023 ClipFUEL PIPE (BLACK) |
17556-SL4-023 |
US $3.11 |
||
|
15
|
15
17700-SW5-U30
Pipe comp
|
17700-SW5-U30 |
— | ||
|
16
|
16
17720-SW5-930
Pipe comp
|
17720-SW5-930 |
— | ||
|
17
|
17
17723-SW3-930
Hose
|
17723-SW3-930 |
— | ||
|
18
|
18
17725-SW5-930
Hose assy
|
17725-SW5-930 |
— | ||
|
19
|
19
17730-SW5-T00
Pipe
|
17730-SW5-T00 |
— | ||
|
20
|
20
17740-SW5-U30
Pipe comp
|
17740-SW5-U30 |
— | ||
|
21
|
21
17742-SV4-003 JointDRAIN TUBE (CANISTER) |
17742-SV4-003 |
US $4.62 |
||
|
22
|
22
17743-SV4-003
Joint
|
17743-SV4-003 |
— | ||
|
23
|
23
17752-SW3-000
Cover
|
17752-SW3-000 |
— | ||
|
24
|
24
17753-SW5-930
Cover
|
17753-SW5-930 |
— | ||
|
25
|
25
17761-SW3-000
Stay a
|
17761-SW3-000 |
— | ||
|
26
|
26
17762-SL4-000
Stay b
|
17762-SL4-000 |
— | ||
|
27
|
27
17763-SL4-000
Stay c
|
17763-SL4-000 |
— | ||
|
28
|
28
17764-SL4-000
Stay d
|
17764-SL4-000 |
— | ||
|
29
|
29
17765-SW3-000
Stay e
|
17765-SW3-000 |
— | ||
|
30
|
30
17766-SW3-000
Stay f
|
17766-SW3-000 |
— | ||
|
31
|
31
17767-SW5-930
Stay g
|
17767-SW5-930 |
— | ||
|
32
|
32
90021-P0A-003 BoltSEALING, 12MM |
90021-P0A-003 |
US $5.46 |
||
|
33
|
33
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
34
|
34
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
35
|
35
91590-SW5-931
Clamp
|
91590-SW5-931 |
— | ||
|
36
|
36
91592-SR3-J32 Clamp hFUEL PIPE (SANOU) |
91592-SR3-J32 |
US $3.50 |
||
|
37
|
37
91592-SW3-003
Clip
|
91592-SW3-003 |
— | ||
|
38
|
38
91594-SR3-J32 Clamp fFUEL PIPE (SANOU) |
91594-SR3-J32 |
US $5.05 |
||
|
39
|
39
91594-ST7-003
Clip
|
91594-ST7-003 |
— | ||
|
40
|
40
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.54 |
||
|
41
|
41
91599-SV4-003 Clamp aFUEL PIPE |
91599-SV4-003 |
US $5.60 |
||
|
42
|
42
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
43
|
43
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
44
|
44
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
45
|
45
95001-551-706-0 TubeFUEL, 5.5X170 (95001-55001-60M) |
95001-551-706-0 |
US $2.37 |
||
|
46
|
46
95001-552-006-0
Tube
|
95001-552-006-0 |
— | ||
|
48
|
48
95001-803-806-0 TubeFUEL, 8X380 (95001-80001-60M) |
95001-803-806-0 |
US $5.62 |
||
|
49
|
49
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
50
|
50
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
51
|
51
95005-352-201-0 Tube3.5X220(95005-35001-10M) |
95005-352-201-0 |
US $9.32 |
||
| replacement | |||||
|
51
|
51
95005-350-0110M Bulk tube,ta 35x1 |
95005-350-0110M |
from US $9.32 |
||
|
52
|
52
95005-353-901-3 Tube3.5X390 (95005-35001-10M) |
95005-353-901-3 |
US $4.14 |
||
