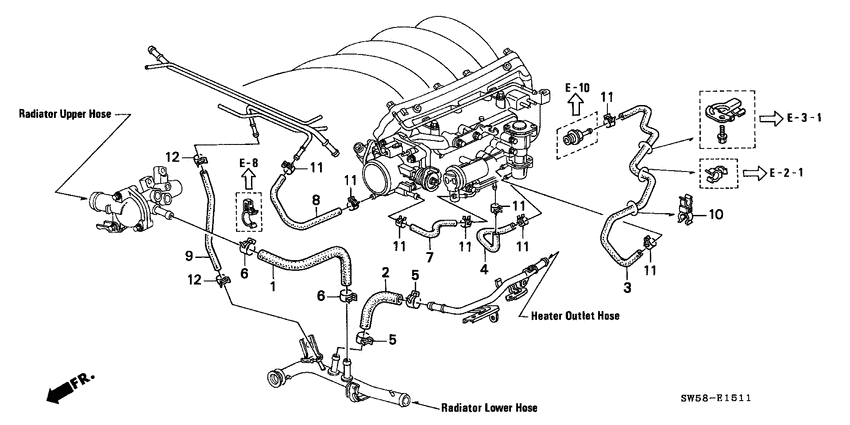

Water hose (L5; RH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR THAILA
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19504-P1R-000
Hose
|
19504-P1R-000 |
— | ||
|
2
|
2
19506-PV1-A00
Hose
|
19506-PV1-A00 |
— | ||
|
3
|
3
19507-P1R-000
Hose a
|
19507-P1R-000 |
— | ||
|
4
|
4
19508-PV3-000
Hose b
|
19508-PV3-000 |
— | ||
|
5
|
5
19511-PV1-A01 ClipWATER HOSE |
19511-PV1-A01 |
US $3.09 |
||
|
6
|
6
19512-PC6-003 ClipHOSE, 18.7MM |
19512-PC6-003 |
from US $3.18 |
||
|
7
|
7
19513-PV3-000
Hose
|
19513-PV3-000 |
— | ||
|
8
|
8
19514-P1R-000
Hose a
|
19514-P1R-000 |
— | ||
|
9
|
9
19515-PV0-000
Hose b
|
19515-PV0-000 |
— | ||
|
10
|
10
36153-PT2-003 ClampTUBE (7.5-13.5) |
36153-PT2-003 |
US $2.24 |
||
|
11
|
11
91405-PD1-004 ClampTUBE(D12) |
91405-PD1-004 |
from US $3.92 |
||
|
12
|
12
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
