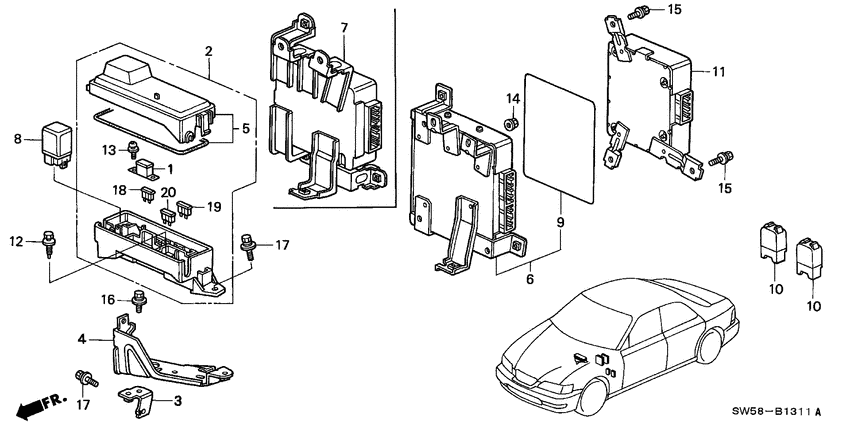

Abs/tcs unit (L5; RH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38211-SM4-003 FuseBLOCK (30A) |
38211-SM4-003 |
US $6.30 |
||
|
2
|
2
38230-SW5-003
Box assy
|
38230-SW5-003 |
— | ||
|
3
|
3
38235-SL5-000
Bracket
|
38235-SL5-000 |
— | ||
|
4
|
4
38236-SW5-000
Bracket
|
38236-SW5-000 |
— | ||
|
5
|
5
38256-SW5-003
Cover
|
38256-SW5-003 |
— | ||
|
7
|
7
39790-SW5-902
Abs unit
|
39790-SW5-902 |
— | ||
|
8
|
8
39792-SP0-014 Relay assyPOWER (4P) (MITSUBA) (12V NO) |
39792-SP0-014 |
US $45.93 |
||
|
10
|
10
39797-SH2-003 Relay assyPOWER (4P) (DENSO) |
39797-SH2-003 |
US $32.77 |
||
|
11
|
11
39900-SW5-013
Tcs unit
|
39900-SW5-013 |
— | ||
|
12
|
12
90114-SG0-003 Bolt5X13 |
90114-SG0-003 |
from US $1.82 |
||
|
13
|
13
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
14
|
14
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
15
|
15
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
16
|
16
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
17
|
17
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
18
|
18
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
20
|
20
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
