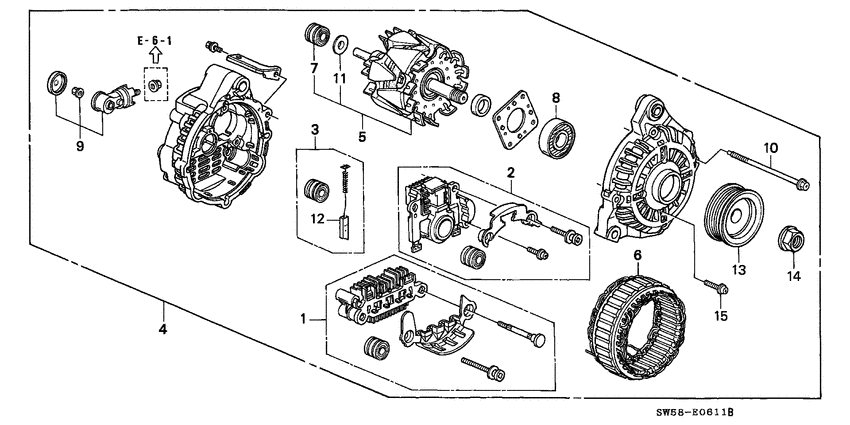

Alternator (MITSUBISHI) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04311-P0G-A02
Rectifier set
|
04311-P0G-A02 |
— | ||
|
2
|
2
04314-P1R-004
Regulator set
|
04314-P1R-004 |
— | ||
|
3
|
3
04315-P08-J02
Brush set
|
04315-P08-J02 |
— | ||
|
4
|
4
31100-P1R-004
ALTERNATOR ASSY. (AHGA22) (MITSUBISHI)
|
31100-P1R-004 |
— | ||
|
5
|
5
31101-P1R-004
Rotor assy
|
31101-P1R-004 |
— | ||
|
6
|
6
31102-P0G-A02
Stator
|
31102-P0G-A02 |
— | ||
|
7
|
7
31111-P08-J02 BearingRR. GENERATOR |
31111-P08-J02 |
from US $13.17 |
||
|
8
|
8
31114-P01-014 BearingFR. GENERATOR |
31114-P01-014 |
US $12.60 |
||
|
9
|
9
31123-P0G-A03
Terminal set
|
31123-P0G-A03 |
— | ||
|
10
|
10
31125-P08-J02 BoltFLANGE |
31125-P08-J02 |
from US $2.38 |
||
|
12
|
12
31140-P64-902 Brush set |
31140-P64-902 |
from US $15.23 |
||
|
13
|
13
31141-P1R-004
Pulley
|
31141-P1R-004 |
— | ||
|
14
|
14
31142-P08-J02 Nut |
31142-P08-J02 |
US $1.68 |
||
|
15
|
15
31146-PE0-004 Screw |
31146-PE0-004 |
from US $1.47 |
