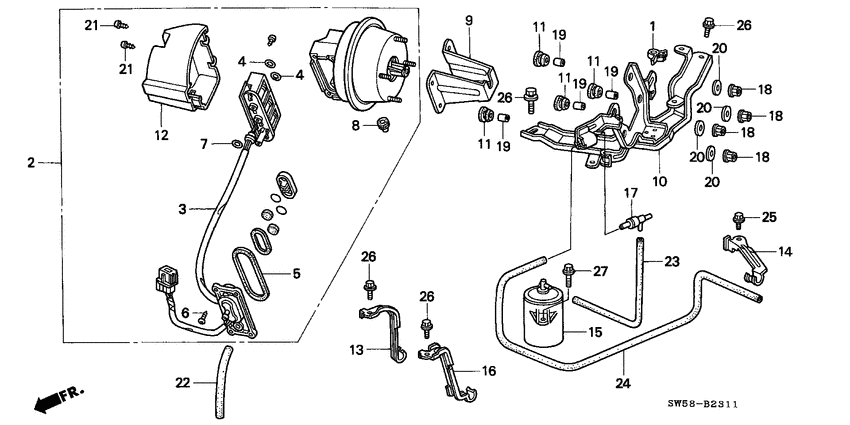

Auto cruise (L5; RH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32175-647-920 ClipWIRE HARNESS |
32175-647-920 |
US $2.50 |
||
| replacement | |||||
|
1
|
1
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
2
|
2
36520-P1R-004
Actuator assy
|
36520-P1R-004 |
— | ||
|
3
|
3
36521-P5M-A01
Valve comp
|
36521-P5M-A01 |
— | ||
|
4
|
4
36522-PH2-005
O-ring
|
36522-PH2-005 |
— | ||
|
5
|
5
36523-PH2-005
Packing
|
36523-PH2-005 |
— | ||
|
6
|
6
36524-PH2-005
Screw
|
36524-PH2-005 |
— | ||
|
7
|
7
36527-PH2-005
O-ring
|
36527-PH2-005 |
— | ||
|
8
|
8
36529-PH2-015
Tube
|
36529-PH2-015 |
— | ||
|
9
|
9
36612-PC6-000
Support comp
|
36612-PC6-000 |
— | ||
|
10
|
10
36613-P1R-000
Stay comp
|
36613-P1R-000 |
— | ||
|
11
|
11
36619-PC6-004 RubberMOUNTING |
36619-PC6-004 |
US $2.52 |
||
|
12
|
12
36622-P1R-000
Cover
|
36622-P1R-000 |
— | ||
|
13
|
13
36623-P1R-000
Clamp a
|
36623-P1R-000 |
— | ||
|
14
|
14
36624-PV3-000
Clamp
|
36624-PV3-000 |
— | ||
|
15
|
15
36625-PV3-003
Tank comp.
|
36625-PV3-003 |
— | ||
|
16
|
16
36626-P1R-000
Clamp b
|
36626-P1R-000 |
— | ||
|
17
|
17
36627-PT0-004
Valve
|
36627-PT0-004 |
— | ||
|
18
|
18
90301-PC1-000 NutHEX., 6MM |
90301-PC1-000 |
US $2.87 |
||
|
19
|
19
90526-PC1-000 CollarDISTANCE |
90526-PC1-000 |
US $2.24 |
||
|
20
|
20
90528-PC1-000
Washer
|
90528-PC1-000 |
— | ||
|
21
|
21
93901-26220 ScrewTAPPING, 6X16 |
93901-26220 |
US $0.44 |
||
|
22
|
22
95005-451-601-0 Tube4.5X160 (95005-45001-10M) |
95005-451-601-0 |
US $3.26 |
||
|
23
|
23
95005-452-601-0 Tube4.5X260 (95005-45001-10M) |
95005-452-601-0 |
US $4.74 |
||
|
24
|
24
91442-P1R-000
Tube
|
91442-P1R-000 |
— | ||
|
25
|
25
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
26
|
26
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
27
|
27
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
