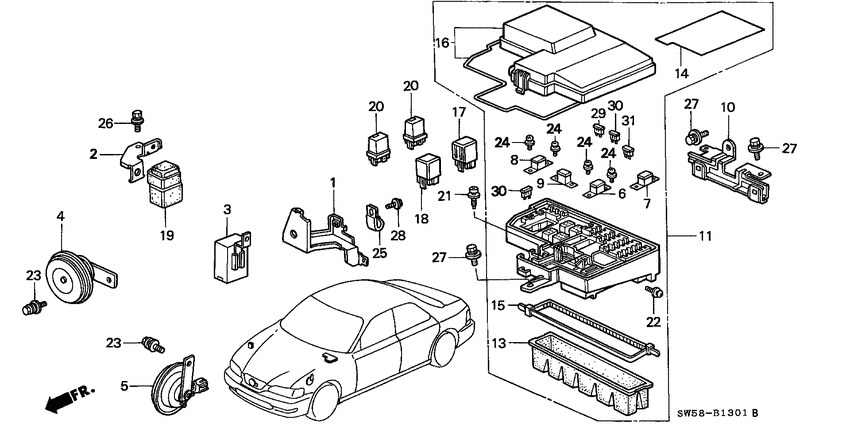

Control unit (ENGINE ROOM; L5; RH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28156-P1R-J00
Bracket
|
28156-P1R-J00 |
— | ||
|
2
|
2
32162-SW5-000
Bracket
|
32162-SW5-000 |
— | ||
|
4
|
4
38100-SD5-901 Horn assyLOW |
38100-SD5-901 |
US $44.16 |
||
|
5
|
5
38150-SH3-901 Horn assyHIGH (MITSUBA) |
38150-SH3-901 |
US $48.90 |
||
|
6
|
6
38211-SM4-003 FuseBLOCK (30A) |
38211-SM4-003 |
US $6.30 |
||
|
7
|
7
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
8
|
8
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
9
|
9
38218-SM4-003 FuseBLOCK (100A) |
38218-SM4-003 |
from US $8.47 |
||
|
10
|
10
38245-SL4-000
Bracket
|
38245-SL4-000 |
— | ||
|
11
|
11
38250-SW5-902
Box assy
|
38250-SW5-902 |
— | ||
|
13
|
13
38252-SM4-003
Cover
|
38252-SM4-003 |
— | ||
|
14
|
14
38253-SW5-902
Label
|
38253-SW5-902 |
— | ||
|
15
|
15
38255-SE0-003
Band
|
38255-SE0-003 |
— | ||
|
16
|
16
38256-SW5-901
Cover
|
38256-SW5-901 |
— | ||
|
17
|
17
39762-SG0-003 Relay assyPOWER (5P) (DENSO) (056700-8160) |
39762-SG0-003 |
US $37.76 |
||
|
18
|
18
39792-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7410) |
39792-SE0-003 |
US $29.44 |
||
|
18
|
18
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
19
|
19
39793-SV4-003 Relay assyPOWER (5P) (MITSUBA) |
39793-SV4-003 |
from US $38.02 |
||
|
20
|
20
39794-SL0-004 Relay assyPOWER(4P) (MITSUBA)(RC-2225)(BLACK) |
39794-SL0-004 |
US $16.51 |
||
|
20
|
20
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
21
|
21
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
22
|
22
90122-SM4-003 Screw-washer5X12 |
90122-SM4-003 |
US $1.82 |
||
|
23
|
23
90138-SM4-003 Bolt-washer8X14 |
90138-SM4-003 |
US $1.75 |
||
|
24
|
24
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
25
|
25
91405-890-780 ClipCORD |
91405-890-780 |
US $3.95 |
||
|
26
|
26
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
27
|
27
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
29
|
29
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
30
|
30
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
31
|
31
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
