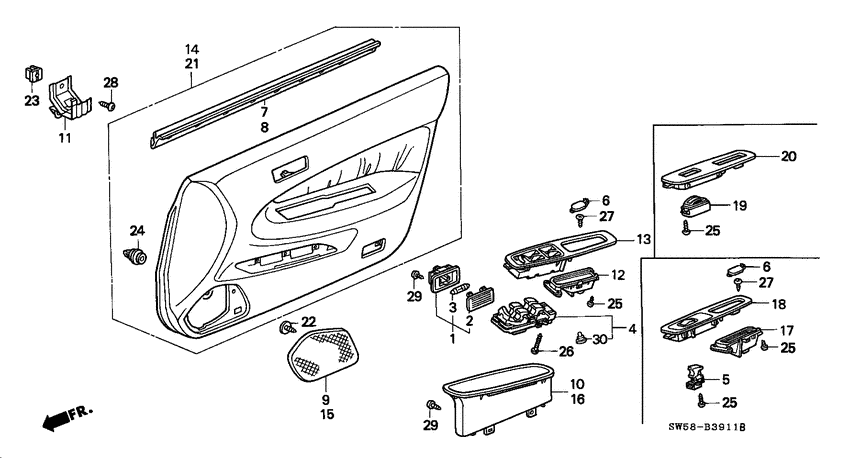

Front door lining (RH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34255-SM4-961ZW
Light assy
|
34255-SM4-961ZW |
— | ||
|
1
|
1
34255-SM4-961ZV Light assyCOURTESY (DAIICHI) *NH264L* |
34255-SM4-961ZV |
US $27.26 |
||
|
2
|
2
34261-SM4-961
Lens
|
34261-SM4-961 |
— | ||
|
3
|
3
34295-SA5-003 Bulb12V 3.4W) (DAIICHI |
34295-SA5-003 |
from US $1.85 |
||
|
4
|
4
35750-SW5-013
Switch assy
|
35750-SW5-013 |
— | ||
|
5
|
5
35760-SW5-003
Sub switch assy.
|
35760-SW5-003 |
— | ||
|
6
|
6
72122-SR2-003ZF CapINSIDE HANDLE CASE *NH1L* |
72122-SR2-003ZF |
US $3.08 |
||
|
6
|
6
72122-SR2-003ZE
Cap
|
72122-SR2-003ZE |
— | ||
|
6
|
6
72122-SR2-003ZC
Cap
|
72122-SR2-003ZC |
— | ||
|
7
|
7
72335-SW5-013
Weatherstrip
|
72335-SW5-013 |
— | ||
|
8
|
8
72375-SW5-013
Weatherstrip
|
72375-SW5-013 |
— | ||
|
9
|
9
83503-SW5-000ZB
Lid
|
83503-SW5-000ZB |
— | ||
|
9
|
9
83503-SW5-000ZA
Lid
|
83503-SW5-000ZA |
— | ||
|
10
|
10
83504-SW5-000ZA
Base
|
83504-SW5-000ZA |
— | ||
|
10
|
10
83504-SW5-000ZB
Base
|
83504-SW5-000ZB |
— | ||
|
11
|
11
83508-SR3-000 Bracket assyPULL POCKET |
83508-SR3-000 |
US $5.88 |
||
|
12
|
12
83521-SW5-000ZD
Pocket
|
83521-SW5-000ZD |
— | ||
|
13
|
13
83524-SZ5-J00ZA
Panel comp
|
83524-SZ5-J00ZA |
— | ||
|
14
|
14
83533-SW5-J51ZE
Lining comp.
|
83533-SW5-J51ZE |
— | ||
|
14
|
14
83533-SW5-J51ZF
Lining comp.
|
83533-SW5-J51ZF |
— | ||
|
15
|
15
83553-SW5-000ZB
Lid
|
83553-SW5-000ZB |
— | ||
|
15
|
15
83553-SW5-000ZA
Lid
|
83553-SW5-000ZA |
— | ||
|
16
|
16
83554-SW5-000ZB
Base
|
83554-SW5-000ZB |
— | ||
|
16
|
16
83554-SW5-000ZA
Base
|
83554-SW5-000ZA |
— | ||
|
17
|
17
83571-SW5-000ZE
Pocket
|
83571-SW5-000ZE |
— | ||
|
19
|
19
83572-SZ5-000ZB
Garnish
|
83572-SZ5-000ZB |
— | ||
|
20
|
20
83574-SZ5-J50ZA
Panel comp
|
83574-SZ5-J50ZA |
— | ||
|
21
|
21
83583-SW5-J51ZE
Lining comp.
|
83583-SW5-J51ZE |
— | ||
|
21
|
21
83583-SW5-J51ZF
Lining comp.
|
83583-SW5-J51ZF |
— | ||
|
22
|
22
90132-SS0-003 Screw-washer3X12 |
90132-SS0-003 |
US $1.47 |
||
|
23
|
23
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
24
|
24
91560-SP0-003 ClipDOOR LINING (GRAY) |
91560-SP0-003 |
US $2.07 |
||
| replacement | |||||
|
24
|
24
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
25
|
25
93901-12320 ScrewTAPPING, 3X12 |
93901-12320 |
from US $0.37 |
||
|
26
|
26
93901-32520 ScrewTAPPING, 3X20 |
93901-32520 |
US $0.37 |
||
|
27
|
27
93903-44420 ScrewTAPPING, 4X16 |
93903-44420 |
from US $0.37 |
||
|
28
|
28
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
29
|
29
93913-14220 ScrewTAPPING, 4X12 |
93913-14220 |
from US $0.37 |
||
|
30
|
30
35853-SW5-000
Bulb
|
35853-SW5-000 |
— | ||
