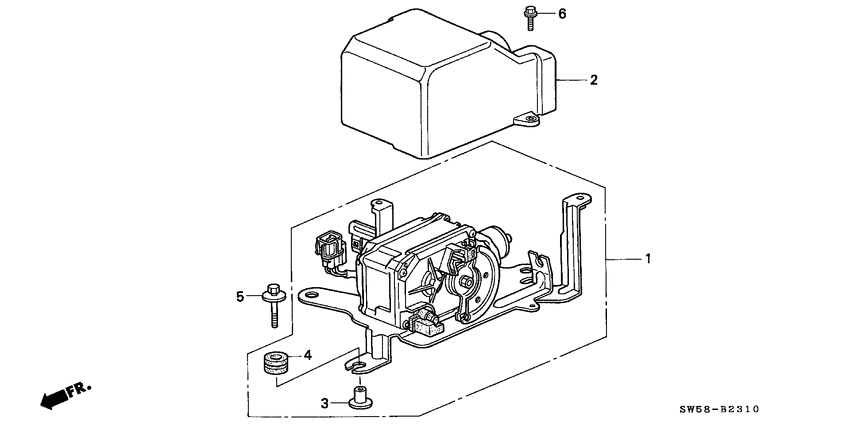

Auto cruise (L5; LH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36510-P1R-A01
Actuator assy
|
36510-P1R-A01 |
— | ||
|
2
|
2
36621-P1R-A00
Cover
|
36621-P1R-A00 |
— | ||
|
3
|
3
36641-PY3-000 CollarACTUATOR MOUNT |
36641-PY3-000 |
US $2.94 |
||
|
4
|
4
36642-PY3-000 RubberACTUATOR MOUNT |
36642-PY3-000 |
US $2.66 |
||
|
5
|
5
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
6
|
6
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
