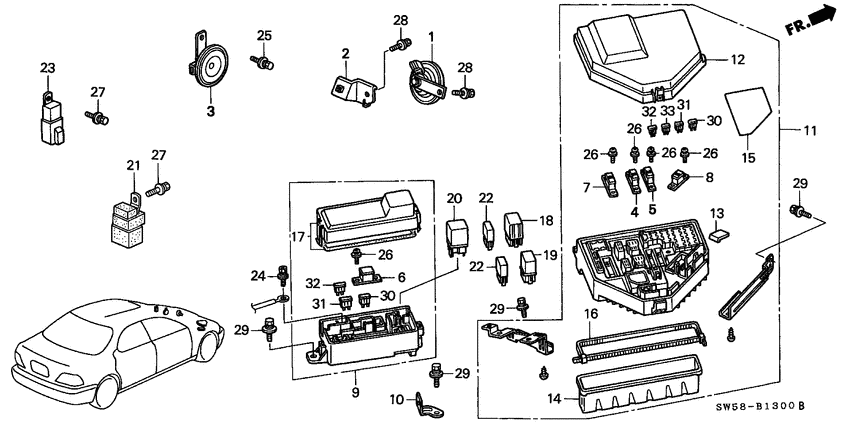

Control unit (ENGINE ROOM; L5; LH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-SM4-A02 Horn assyLOW |
38100-SM4-A02 |
US $66.42 |
||
|
2
|
2
38101-SL5-A00
Bracket
|
38101-SL5-A00 |
— | ||
|
3
|
3
38150-SM4-A02
Horn assy
|
38150-SM4-A02 |
— | ||
| replacement | |||||
|
3
|
3
38150-SH3-013 Horn assyHIGH (MITSUBA) |
38150-SH3-013 |
US $66.57 |
||
|
4
|
4
38211-SM4-003 FuseBLOCK (30A) |
38211-SM4-003 |
US $6.30 |
||
|
5
|
5
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
6
|
6
38211-SM4-003 FuseBLOCK (30A) |
38211-SM4-003 |
US $6.30 |
||
|
7
|
7
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
8
|
8
38218-SM4-003 FuseBLOCK (100A) |
38218-SM4-003 |
from US $8.47 |
||
|
9
|
9
38230-SW5-003
Box assy
|
38230-SW5-003 |
— | ||
|
10
|
10
38235-SW5-A00
Bracket
|
38235-SW5-A00 |
— | ||
|
11
|
11
38250-SW5-A02
Box assy
|
38250-SW5-A02 |
— | ||
|
12
|
12
38251-SW5-A01
Cover
|
38251-SW5-A01 |
— | ||
|
13
|
13
38252-SL5-A01
Cover
|
38252-SL5-A01 |
— | ||
|
14
|
14
38252-SM4-003
Cover
|
38252-SM4-003 |
— | ||
|
15
|
15
38253-SW5-A02
Label
|
38253-SW5-A02 |
— | ||
|
16
|
16
38255-SE0-003
Band
|
38255-SE0-003 |
— | ||
|
17
|
17
38256-SW5-003
Cover
|
38256-SW5-003 |
— | ||
|
18
|
18
39762-SG0-003 Relay assyPOWER (5P) (DENSO) (056700-8160) |
39762-SG0-003 |
US $37.76 |
||
|
19
|
19
39792-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7410) |
39792-SE0-003 |
US $29.44 |
||
|
19
|
19
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
20
|
20
39792-SP0-014 Relay assyPOWER (4P) (MITSUBA) (12V NO) |
39792-SP0-014 |
US $45.93 |
||
|
21
|
21
39793-SE3-003 Relay assyPOWER (5P) (MITSUBA) |
39793-SE3-003 |
US $37.13 |
||
|
22
|
22
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
23
|
23
39797-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39797-SE0-004 |
from US $28.54 |
||
|
23
|
23
39797-SE0-003 Relay assyPOWER (4P) (DENSO) (056700-7330) |
39797-SE0-003 |
US $36.20 |
||
|
24
|
24
90114-SG0-003 Bolt5X13 |
90114-SG0-003 |
from US $1.82 |
||
|
25
|
25
90138-SM4-003 Bolt-washer8X14 |
90138-SM4-003 |
US $1.75 |
||
|
26
|
26
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
27
|
27
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
28
|
28
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
28
|
28
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
29
|
29
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
30
|
30
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
30
|
30
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
31
|
31
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
32
|
32
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
33
|
33
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
