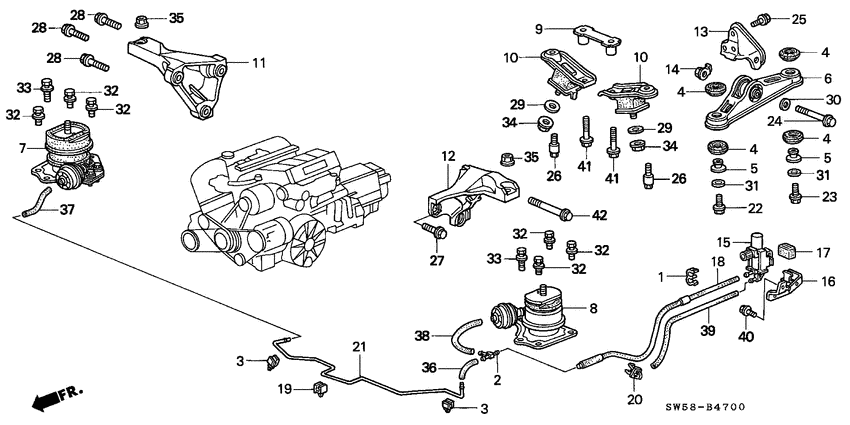

Engine mounts (L5; LH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
36010-PE0-004 JointTHREE WAY |
36010-PE0-004 |
US $6.30 |
||
|
3
|
3
46391-SH3-003 ClipBRAKE PIPE |
46391-SH3-003 |
US $2.93 |
||
|
4
|
4
50265-SW5-980
Rubber
|
50265-SW5-980 |
— | ||
|
5
|
5
50266-SL4-020
Stopper
|
50266-SL4-020 |
— | ||
|
6
|
6
50801-SW5-980
Rubber assy.
|
50801-SW5-980 |
— | ||
|
7
|
7
50810-SW5-A81
Insulator assy
|
50810-SW5-A81 |
— | ||
|
8
|
8
50815-SW5-A81
Insulator assy
|
50815-SW5-A81 |
— | ||
|
9
|
9
50819-SL4-980
Spacer
|
50819-SL4-980 |
— | ||
|
10
|
10
50820-SL4-980
Rubber
|
50820-SL4-980 |
— | ||
|
11
|
11
50824-SW5-000
Bracket
|
50824-SW5-000 |
— | ||
|
12
|
12
50825-SW5-000
Bracket
|
50825-SW5-000 |
— | ||
|
13
|
13
50827-SL4-020
Bracket
|
50827-SL4-020 |
— | ||
|
14
|
14
50839-SL4-000
Nut
|
50839-SL4-000 |
— | ||
|
15
|
15
50913-SV7-A01
Valve assy.
|
50913-SV7-A01 |
— | ||
|
16
|
16
50915-SW5-A80
Stay
|
50915-SW5-A80 |
— | ||
|
17
|
17
50917-SV7-A00 RubberMOUNTING |
50917-SV7-A00 |
US $2.52 |
||
|
18
|
18
50932-SW5-A80
Tube
|
50932-SW5-A80 |
— | ||
|
19
|
19
50933-SZ3-003 ClipACCUMULATOR PIPE |
50933-SZ3-003 |
US $1.61 |
||
|
20
|
20
50934-SW5-A80 ClipACCUMULATOR TUBE |
50934-SW5-A80 |
US $1.40 |
||
|
21
|
21
50940-SW5-A80
Pipe
|
50940-SW5-A80 |
— | ||
|
22
|
22
90163-SL4-010
Bolt
|
90163-SL4-010 |
— | ||
|
23
|
23
90165-SL4-010
Bolt
|
90165-SL4-010 |
— | ||
|
24
|
24
90165-SM4-020 BoltFLANGE, 12X101 |
90165-SM4-020 |
US $8.14 |
||
|
25
|
25
90182-SL4-010
Bolt
|
90182-SL4-010 |
— | ||
|
26
|
26
90187-SL4-000 BoltFLANGE, 10X22 |
90187-SL4-000 |
US $2.66 |
||
|
27
|
27
90188-SL4-010 BoltFLANGE, 10X35 |
90188-SL4-010 |
US $2.24 |
||
|
28
|
28
90188-SW5-000
Bolt
|
90188-SW5-000 |
— | ||
|
29
|
29
90504-SA0-000 WasherPLAIN, 10MM |
90504-SA0-000 |
US $9.37 |
||
|
30
|
30
90504-SB0-000 WasherPLAIN, 12MM |
90504-SB0-000 |
from US $1.48 |
||
|
31
|
31
90553-SL4-000
Washer
|
90553-SL4-000 |
— | ||
|
32
|
32
93401-100-200-8 Bolt-washer10X20 |
93401-100-200-8 |
US $0.74 |
||
|
33
|
33
93401-100-500-8 Bolt-washer10X50 |
93401-100-500-8 |
from US $0.89 |
||
|
34
|
34
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
35
|
35
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
36
|
36
95005-350-501-0 Tube3.5X50(95005-35001-10M) |
95005-350-501-0 |
US $0.89 |
||
|
37
|
37
95005-351-251-0 Tube3.5X125(95005-35001-10M) |
95005-351-251-0 |
US $1.55 |
||
|
38
|
38
95005-351-501-0
Tube
|
95005-351-501-0 |
— | ||
|
39
|
39
95005-353-701-0 Tube3.5X370 (95005-35001-10M) |
95005-353-701-0 |
US $4.14 |
||
|
40
|
40
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
41
|
41
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
|
42
|
42
95701-120-900-8 BoltFLANGE, 12X90 |
95701-120-900-8 |
US $1.63 |
