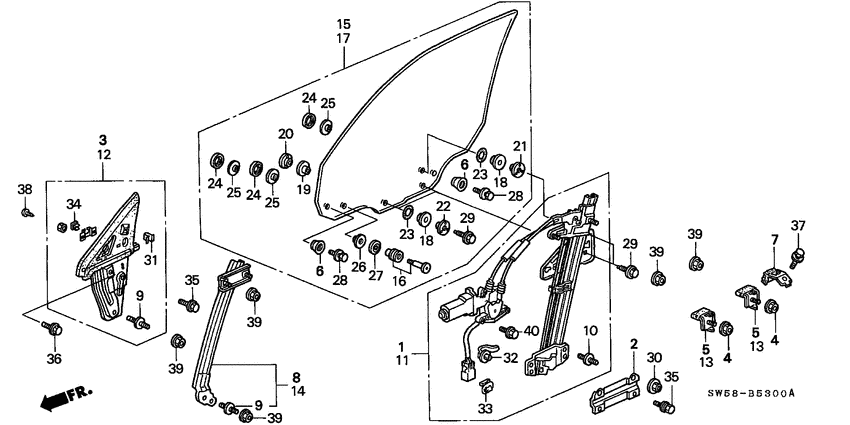

Front door windows Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72210-SW5-A02
Regulator assy
|
72210-SW5-A02 |
— | ||
|
2
|
2
72212-SW5-000
Patch
|
72212-SW5-000 |
— | ||
|
3
|
3
72240-SW5-013
Holder
|
72240-SW5-013 |
— | ||
|
4
|
4
72242-SL4-000
Nut
|
72242-SL4-000 |
— | ||
|
5
|
5
72245-SL5-000
Plate
|
72245-SL5-000 |
— | ||
|
6
|
6
72246-SG0-003
Stopper
|
72246-SG0-003 |
— | ||
|
7
|
7
72246-SK7-013
Stabilizer
|
72246-SK7-013 |
— | ||
|
8
|
8
72247-SW5-003
Guide
|
72247-SW5-003 |
— | ||
|
9
|
9
72249-SK7-000 BoltDOOR ADJUST |
72249-SK7-000 |
US $3.78 |
||
|
10
|
10
72249-SW5-000 BoltDOOR ADJUST |
72249-SW5-000 |
US $3.78 |
||
|
11
|
11
72250-SW5-A02
Regulator assy
|
72250-SW5-A02 |
— | ||
|
12
|
12
72280-SW5-013
Holder
|
72280-SW5-013 |
— | ||
|
13
|
13
72285-SL5-000
Plate
|
72285-SL5-000 |
— | ||
|
14
|
14
72297-ST8-003
Guide
|
72297-ST8-003 |
— | ||
|
15
|
15
73300-SW5-J02 Glass assyR. FR. DOOR (GREEN)(ASAHI) WC200129 - |
73300-SW5-J02 |
US $341.76 |
||
|
15
|
15
73300-SW5-020 Glass assyR. FR. DOOR (GREEN)(AP TECH) 00000000 - WC200128 |
73300-SW5-020 |
US $341.76 |
||
|
16
|
16
73310-ST8-003
Roller assy
|
73310-ST8-003 |
— | ||
|
17
|
17
73350-SW5-020 Glass assyL. FR. DOOR (GREEN)(AP TECH) 00000000 - WC200128 |
73350-SW5-020 |
US $341.76 |
||
|
17
|
17
73350-SW5-J02 Glass assyL. FR. DOOR (GREEN)(ASAHI) WC200129 - |
73350-SW5-J02 |
US $341.76 |
||
|
18
|
18
73572-SK8-003
Washer
|
73572-SK8-003 |
— | ||
|
19
|
19
73573-SK8-003
Washer b
|
73573-SK8-003 |
— | ||
|
20
|
20
73574-SK8-000 NutGLASS PLATE |
73574-SK8-000 |
US $2.80 |
||
|
21
|
21
73594-SK8-000 BoltDOOR GLASS TIE |
73594-SK8-000 |
US $8.82 |
||
|
22
|
22
73594-SK8-000 BoltDOOR GLASS TIE |
73594-SK8-000 |
US $8.82 |
||
|
23
|
23
73804-SK8-000
Washer
|
73804-SK8-000 |
— | ||
|
24
|
24
75318-SB2-000 NutDOOR GLASS STOPPER |
75318-SB2-000 |
US $2.94 |
||
|
25
|
25
75318-SK7-003
Washer
|
75318-SK7-003 |
— | ||
|
26
|
26
75319-SK7-003
Washer
|
75319-SK7-003 |
— | ||
|
27
|
27
75357-SB2-000
Washer
|
75357-SB2-000 |
— | ||
|
28
|
28
90001-SB2-000 Bolt-washer6X17 |
90001-SB2-000 |
US $1.82 |
||
|
29
|
29
90158-SW5-000 BoltDOOR GLASS |
90158-SW5-000 |
US $1.47 |
||
|
30
|
30
90302-SD2-003 Nut-washer8MM |
90302-SD2-003 |
US $1.82 |
||
|
31
|
31
90615-SK7-003 ClipMIRROR GARNISH |
90615-SK7-003 |
US $2.22 |
||
|
32
|
32
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
33
|
33
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
34
|
34
91619-SL5-000
Grommet
|
91619-SL5-000 |
— | ||
|
35
|
35
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
36
|
36
93405-060-160-7 Bolt-washer6X16 |
93405-060-160-7 |
from US $0.59 |
||
|
37
|
37
93405-080-160-8 Bolt-washer8X16 |
93405-080-160-8 |
from US $0.74 |
||
|
38
|
38
93903-44380 ScrewTAPPING, 4X12 |
93903-44380 |
from US $0.41 |
||
|
39
|
39
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
40
|
40
95801-060-121-8 BoltFLANGE, 6X12 |
95801-060-121-8 |
from US $0.52 |
||
| replacement | |||||
|
40
|
40
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
