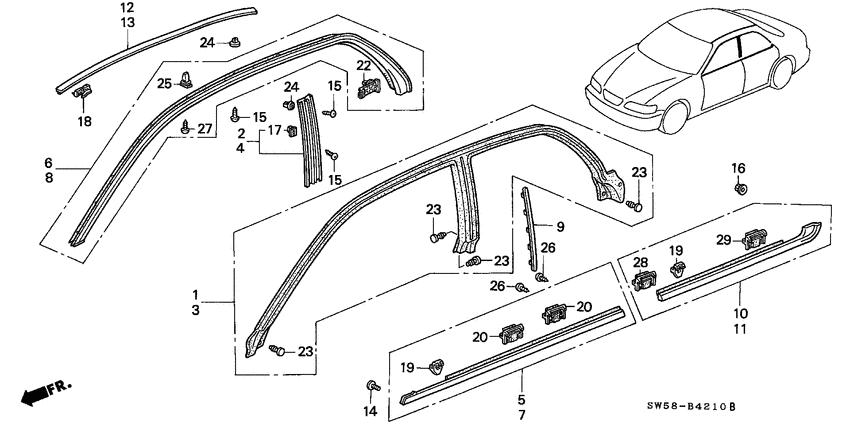

Molding Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72381-SW5-003
Weatherstrip
|
72381-SW5-003 |
— | ||
|
2
|
2
72385-SW5-003
Retainer assy
|
72385-SW5-003 |
— | ||
|
3
|
3
72391-SW5-003
Weatherstrip
|
72391-SW5-003 |
— | ||
|
4
|
4
72395-SW5-003
Retainer assy
|
72395-SW5-003 |
— | ||
|
5
|
5
72410-SW5-023
Molding assy.
|
72410-SW5-023 |
— | ||
|
6
|
6
72420-SW5-003
MOLDING COMP., R. DRIP & RETAINER
|
72420-SW5-003 |
— | ||
|
7
|
7
72450-SW5-023
Molding assy.
|
72450-SW5-023 |
— | ||
|
8
|
8
72460-SW5-003
MOLDING COMP., L. DRIP & RETAINER
|
72460-SW5-003 |
— | ||
|
9
|
9
72525-SL9-000
Molding
|
72525-SL9-000 |
— | ||
|
10
|
10
72910-SW5-023
Molding assy.
|
72910-SW5-023 |
— | ||
|
11
|
11
72950-SW5-023
Molding assy.
|
72950-SW5-023 |
— | ||
|
12
|
12
74306-SW5-003ZP
Molding assy.
|
74306-SW5-003ZP |
— | ||
|
12
|
12
74306-SW5-003ZJ
Molding assy.
|
74306-SW5-003ZJ |
— | ||
|
12
|
12
74306-SW5-003ZA
Molding assy.
|
74306-SW5-003ZA |
— | ||
|
12
|
12
74306-SW5-003ZN
Molding assy.
|
74306-SW5-003ZN |
— | ||
|
12
|
12
74306-SW5-003ZQ
Molding assy.
|
74306-SW5-003ZQ |
— | ||
|
12
|
12
74306-SW5-003ZH
Molding assy.
|
74306-SW5-003ZH |
— | ||
|
13
|
13
74316-SW5-003ZJ
Molding assy.
|
74316-SW5-003ZJ |
— | ||
|
13
|
13
74316-SW5-003ZA
Molding assy.
|
74316-SW5-003ZA |
— | ||
|
13
|
13
74316-SW5-003ZN
Molding assy.
|
74316-SW5-003ZN |
— | ||
|
13
|
13
74316-SW5-003ZQ
Molding assy.
|
74316-SW5-003ZQ |
— | ||
|
13
|
13
74316-SW5-003ZH
Molding assy.
|
74316-SW5-003ZH |
— | ||
|
13
|
13
74316-SW5-003ZP
Molding assy.
|
74316-SW5-003ZP |
— | ||
|
14
|
14
90122-SM3-013
Screw-washer
|
90122-SM3-013 |
— | ||
|
15
|
15
90146-SL4-003 ScrewTAPPING, 5X12 |
90146-SL4-003 |
US $4.59 |
||
|
16
|
16
90301-634-013
Nut
|
90301-634-013 |
— | ||
|
17
|
17
90665-SG0-003
Grommet
|
90665-SG0-003 |
— | ||
|
18
|
18
90666-SS0-003 ClipROOF MOLDING |
90666-SS0-003 |
US $1.54 |
||
|
19
|
19
91561-SL4-003 ClipDOOR MOLDING |
91561-SL4-003 |
US $1.82 |
||
|
20
|
20
91563-SW5-023
Stabilizer
|
91563-SW5-023 |
— | ||
|
22
|
22
91566-SW5-003
Clip
|
91566-SW5-003 |
— | ||
|
23
|
23
91567-SR2-013 Clip |
91567-SR2-013 |
US $1.78 |
||
|
24
|
24
91651-SL4-003 GrommetDRIP & RETAINER |
91651-SL4-003 |
US $1.85 |
||
|
25
|
25
91652-SL4-003
Grommet
|
91652-SL4-003 |
— | ||
|
26
|
26
93903-242G0 ScrewTAPPING, 4X10 |
93903-242G0 |
from US $0.67 |
||
|
27
|
27
93903-446J0 ScrewTAPPING, 4X25 |
93903-446J0 |
US $0.37 |
||
|
28
|
28
91568-SW5-003
Stabilizer
|
91568-SW5-003 |
— | ||
|
29
|
29
91569-SW5-003
Stabilizer
|
91569-SW5-003 |
— |
