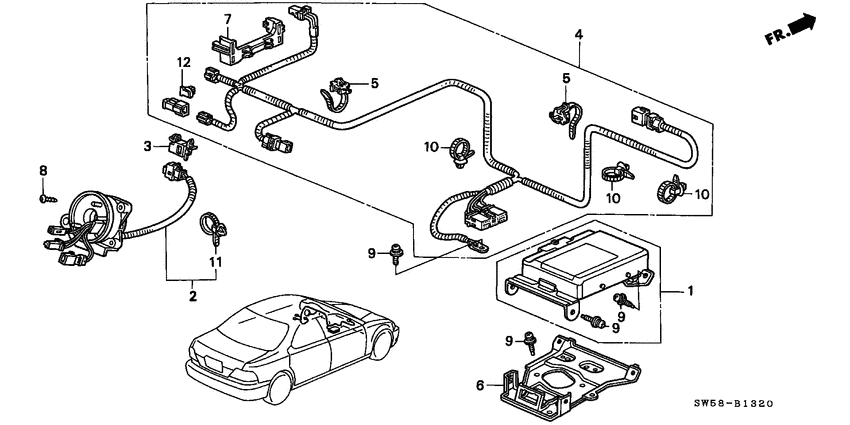

Srs unit (LH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06772-SW5-A81
Srs unit kit
|
06772-SW5-A81 |
— | ||
|
2
|
2
77900-SW5-A83
Reel assy
|
77900-SW5-A83 |
— | ||
|
3
|
3
77907-SW5-003
Holder
|
77907-SW5-003 |
— | ||
|
4
|
4
77961-SW5-A80
Harness
|
77961-SW5-A80 |
— | ||
|
5
|
5
77963-SV4-A01 ClipSRS HARNESS (BLUE) (153MM) |
77963-SV4-A01 |
US $2.10 |
||
|
6
|
6
77965-SW5-A00
Bracket
|
77965-SW5-A00 |
— | ||
|
7
|
7
78964-SL5-A81
Protector
|
78964-SL5-A81 |
— | ||
|
8
|
8
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
9
|
9
90134-SG0-A81 BoltTORX, 6X16 |
90134-SG0-A81 |
US $2.24 |
||
|
10
|
10
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
11
|
11
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
12
|
12
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
