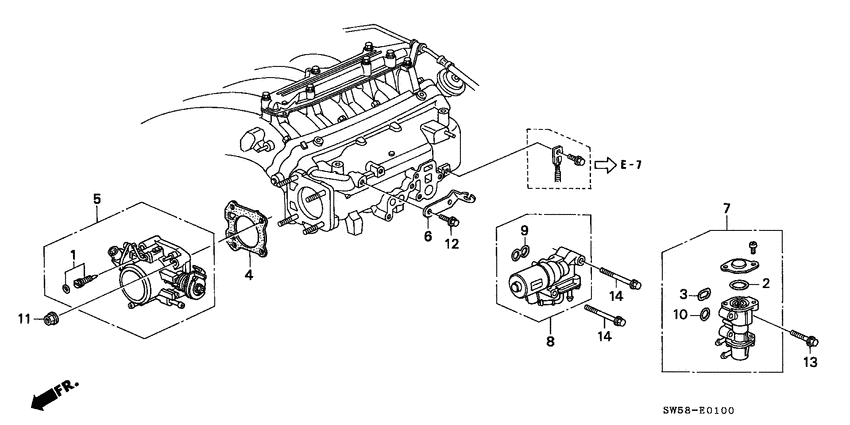

Throttle body (L5; LH) Diagram Honda VIGOR
- Year
- 1998
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PM6-005 Screw set |
16016-PM6-005 |
from US $7.62 |
||
|
2
|
2
16075-PE2-005 O-ring31.2X1.9 |
16075-PE2-005 |
US $4.65 |
||
|
3
|
3
16077-PR3-005 O-ring |
16077-PR3-005 |
US $4.23 |
||
|
4
|
4
16176-PV0-014
Gasket
|
16176-PV0-014 |
— | ||
|
5
|
5
16400-PV1-A51
Throttle Body Assy
|
16400-PV1-A51 |
— | ||
|
6
|
6
16411-PV0-000
Stay
|
16411-PV0-000 |
— | ||
|
7
|
7
16500-P1R-901
Valve assy.
|
16500-P1R-901 |
— | ||
|
8
|
8
36450-P1R-A01
Valve assy.
|
36450-P1R-A01 |
— | ||
|
9
|
9
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.42 |
||
|
10
|
10
91304-PE2-005 O-ring15.8X1.9 |
91304-PE2-005 |
US $2.77 |
||
|
11
|
11
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
12
|
12
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
13
|
13
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
14
|
14
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
