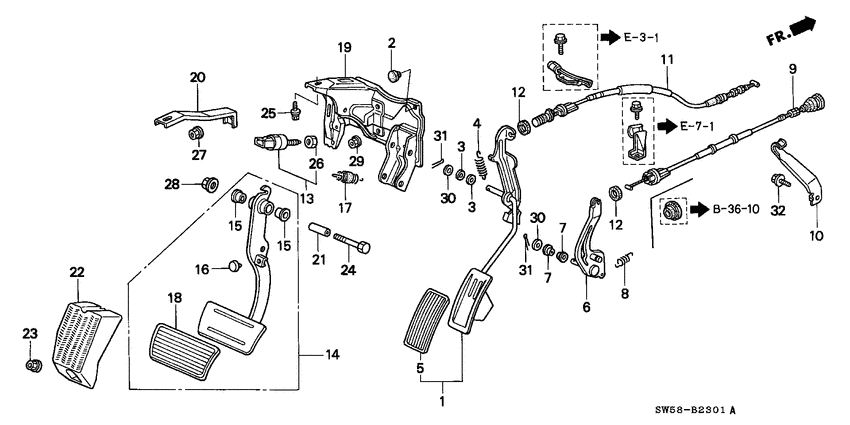

Pedal (L5; RH) Diagram Honda VIGOR
- Year
- 1997
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SL4-010
Pedal
|
17800-SL4-010 |
— | ||
|
2
|
2
17805-SE0-000
Pad
|
17805-SE0-000 |
— | ||
|
3
|
3
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
4
|
4
17814-SL4-000
Spring
|
17814-SL4-000 |
— | ||
|
5
|
5
17816-SF1-000
Cover
|
17816-SF1-000 |
— | ||
|
6
|
6
17856-SL4-000
Arm
|
17856-SL4-000 |
— | ||
|
7
|
7
17858-SL5-A01
Bush
|
17858-SL5-A01 |
— | ||
|
8
|
8
17863-SL4-000
Spring
|
17863-SL4-000 |
— | ||
|
9
|
9
17880-SW3-003
Wire
|
17880-SW3-003 |
— | ||
|
10
|
10
17885-SW5-900
Stay
|
17885-SW5-900 |
— | ||
|
11
|
11
17910-SL4-003
Wire
|
17910-SL4-003 |
— | ||
|
12
|
12
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
13
|
13
36750-SR3-003
Switch assy
|
36750-SR3-003 |
— | ||
|
14
|
14
46500-SL4-980
Pedal comp
|
46500-SL4-980 |
— | ||
|
15
|
15
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
16
|
16
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
17
|
17
46530-SW3-000
Spring assy
|
46530-SW3-000 |
— | ||
|
18
|
18
46545-SE0-980
Cover
|
46545-SE0-980 |
— | ||
|
19
|
19
46590-SL4-000
Bracket
|
46590-SL4-000 |
— | ||
|
20
|
20
46597-SW5-000
Stay assy
|
46597-SW5-000 |
— | ||
|
21
|
21
46936-SM4-000
Collar
|
46936-SM4-000 |
— | ||
|
22
|
22
46991-SW5-981
Footrest
|
46991-SW5-981 |
— | ||
|
23
|
23
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $1.05 |
||
|
24
|
24
92201-10065-0J BoltHEX., 10X65 |
92201-10065-0J |
US $1.04 |
||
|
25
|
25
93406-080-160-8 Bolt-washer8X16 |
93406-080-160-8 |
from US $0.67 |
||
|
26
|
26
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
27
|
27
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
28
|
28
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
29
|
29
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
30
|
30
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
31
|
31
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
