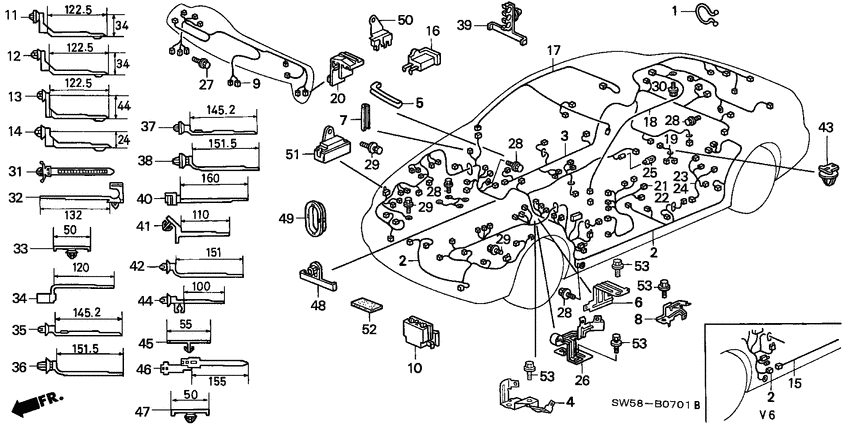

Wire harness (RH) Diagram Honda VIGOR
- Year
- 1997
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR SINGAP
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17916-PE1-671 ClipTUBE (26) |
17916-PE1-671 |
US $7.15 |
||
|
2
|
2
32100-SW5-405
Harness
|
32100-SW5-405 |
— | ||
|
3
|
3
32108-SW5-931
Harness
|
32108-SW5-931 |
— | ||
|
5
|
5
32111-SW5-000
Protector a
|
32111-SW5-000 |
— | ||
|
7
|
7
32112-SW5-000 Protector b |
32112-SW5-000 |
US $2.03 |
||
|
8
|
8
32114-P1R-000
Stay c
|
32114-P1R-000 |
— | ||
|
9
|
9
32117-SW5-T01
Harness
|
32117-SW5-T01 |
— | ||
|
10
|
10
32131-SV4-003 CapCOUPLER (CP 2P, 3P) |
32131-SV4-003 |
US $4.90 |
||
|
12
|
12
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
13
|
13
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
14
|
14
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
16
|
16
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
17
|
17
32155-SW5-020
Cord
|
32155-SW5-020 |
— | ||
|
19
|
19
32170-SW5-000 CordFUEL UNIT |
32170-SW5-000 |
US $30.34 |
||
|
20
|
20
32312-SM4-013 HolderCOUPLER |
32312-SM4-013 |
US $4.34 |
||
|
21
|
21
32751-SW5-912
Harness
|
32751-SW5-912 |
— | ||
|
22
|
22
32752-SW5-902
Harness
|
32752-SW5-902 |
— | ||
|
23
|
23
32753-SW5-902
Harness
|
32753-SW5-902 |
— | ||
|
24
|
24
32754-SW5-902
Harness
|
32754-SW5-902 |
— | ||
|
25
|
25
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
26
|
26
38927-P1R-J00
Stay
|
38927-P1R-J00 |
— | ||
|
27
|
27
90114-SG0-003 Bolt5X13 |
90114-SG0-003 |
from US $1.82 |
||
|
28
|
28
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
29
|
29
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
31
|
31
90676-SA8-003 BandWIRE HARNESS, 150MM (BLUE) |
90676-SA8-003 |
from US $2.24 |
||
|
34
|
34
91531-SW5-003 BandHARNESS, 6MM (NATURAL) (120MM) |
91531-SW5-003 |
US $3.78 |
||
|
35
|
35
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
36
|
36
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
37
|
37
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
40
|
40
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
41
|
41
91550-ST0-003 ClipWIRE HARNESS (NATURAL) (110MM) |
91550-ST0-003 |
US $1.68 |
||
|
43
|
43
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
44
|
44
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
45
|
45
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
46
|
46
91559-ST5-003 ClipHARNESS BAND OFFSET(30) (NATURAL) |
91559-ST5-003 |
US $1.96 |
||
|
48
|
48
91571-SP0-003 ClipWIRE HARNESS (BLACK) (64MM) |
91571-SP0-003 |
US $2.17 |
||
|
49
|
49
91647-SJ6-003 GrommetWIRE HARNESS (25X45) |
91647-SJ6-003 |
US $4.48 |
||
|
50
|
50
91763-SH3-003 BarJOINT (6P) |
91763-SH3-003 |
US $11.56 |
||
|
51
|
51
91786-SR3-003 BarJOINT (10P) |
91786-SR3-003 |
US $6.72 |
||
|
52
|
52
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
53
|
53
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
