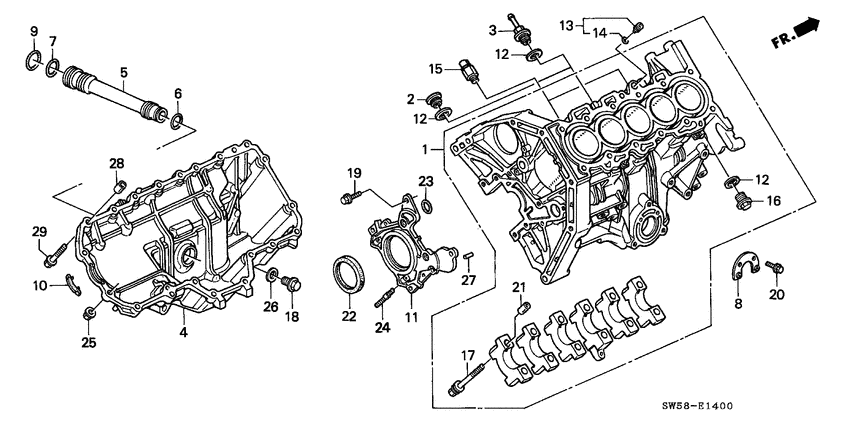

Cylinder block/oil pan (L5) Diagram Honda VIGOR
- Year
- 1997
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-P1R-000
Block assy
|
11000-P1R-000 |
— | ||
|
3
|
3
11107-PV1-000
Joint
|
11107-PV1-000 |
— | ||
|
4
|
4
11200-P1R-000
Pan
|
11200-P1R-000 |
— | ||
|
5
|
5
11230-PV1-000
Pipe
|
11230-PV1-000 |
— | ||
|
6
|
6
11231-PV0-003 O-ring aOIL PAN INNER PIPE |
11231-PV0-003 |
US $2.73 |
||
|
7
|
7
11232-PV0-003
O-ring b
|
11232-PV0-003 |
— | ||
|
8
|
8
11233-PV0-000
Plate
|
11233-PV0-000 |
— | ||
|
9
|
9
11234-PV0-003
O-ring
|
11234-PV0-003 |
— | ||
|
10
|
10
11251-PV0-000
Packing
|
11251-PV0-000 |
— | ||
|
11
|
11
11301-PV0-J00
Cover
|
11301-PV0-J00 |
— | ||
|
12
|
12
12207-634-300
Washer
|
12207-634-300 |
— | ||
|
13
|
13
15140-PH3-000 Orifice assyOIL CONTROL |
15140-PH3-000 |
from US $6.86 |
||
|
14
|
14
15142-PH3-003 O-ring10.8X2.4 (ARAI) |
15142-PH3-003 |
from US $2.96 |
||
|
16
|
16
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
17
|
17
90007-PV0-003
Bolt-washer
|
90007-PV0-003 |
— | ||
|
18
|
18
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $2.92 |
||
|
19
|
19
90051-PH7-000 BoltFLANGE, 6X18 |
90051-PH7-000 |
US $2.10 |
||
|
20
|
20
90052-PV0-000
Bolt
|
90052-PV0-000 |
— | ||
|
21
|
21
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
22
|
22
91214-PH3-751
Oil seal
|
91214-PH3-751 |
— | ||
|
22
|
22
91214-PR4-A01
Oil seal
|
91214-PR4-A01 |
— | ||
|
23
|
23
91308-PK1-003 O-ring26.2X2.4 (NOK) |
91308-PK1-003 |
from US $1.93 |
||
|
24
|
24
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
25
|
25
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
26
|
26
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
27
|
27
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
28
|
28
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
29
|
29
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
