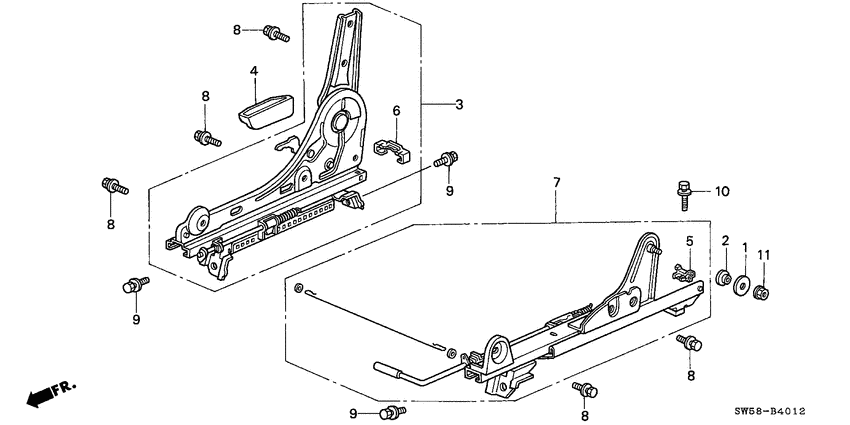

Front seat components (3) Diagram Honda VIGOR
- Year
- 1996
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81104-SE3-J02
Washer
|
81104-SE3-J02 |
— | ||
|
2
|
2
81108-SE3-J02 BushNYLON (TACHI-S) (BLACK) |
81108-SE3-J02 |
US $2.31 |
||
|
3
|
3
81150-SW5-A02
Slide comp.
|
81150-SW5-A02 |
— | ||
|
4
|
4
81231-SM4-J03ZV KnobR. RECLINING *YR164L* |
81231-SM4-J03ZV |
US $8.26 |
||
|
4
|
4
81231-SM4-J03ZU KnobR. RECLINING *NH264L* |
81231-SM4-J03ZU |
US $8.26 |
||
|
5
|
5
81261-SK7-005
Cap
|
81261-SK7-005 |
— | ||
|
6
|
6
81262-SM4-J02
Cap
|
81262-SM4-J02 |
— | ||
|
7
|
7
81270-SW5-A02
Adjuster
|
81270-SW5-A02 |
— | ||
|
8
|
8
93402-100-250-7 Bolt-washer10X25 |
93402-100-250-7 |
US $0.81 |
||
|
9
|
9
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
10
|
10
93405-100-350-8 Bolt-washer10X35 |
93405-100-350-8 |
US $0.89 |
||
|
11
|
11
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
