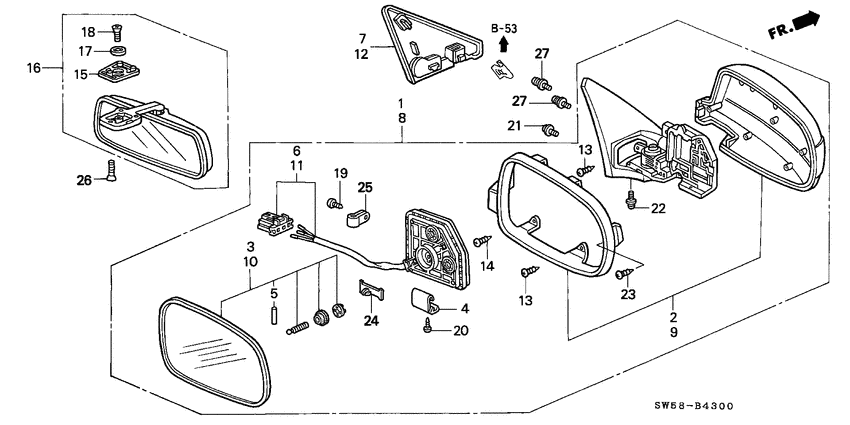

Mirror (-'96; LH) Diagram Honda VIGOR
- Year
- 1996
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76200-SW5-Y22ZF
Mirror assy
|
76200-SW5-Y22ZF |
— | ||
|
1
|
1
76200-SW5-Y22ZA
Mirror assy
|
76200-SW5-Y22ZA |
— | ||
|
1
|
1
76200-SW5-Y22ZC
Mirror assy
|
76200-SW5-Y22ZC |
— | ||
|
1
|
1
76200-SW5-Y22ZE
Mirror assy
|
76200-SW5-Y22ZE |
— | ||
|
1
|
1
76200-SW5-Y22ZB
Mirror assy
|
76200-SW5-Y22ZB |
— | ||
|
1
|
1
76200-SW5-Y22ZD
Mirror assy
|
76200-SW5-Y22ZD |
— | ||
|
2
|
2
76201-SM4-J21YQ
Housing
|
76201-SM4-J21YQ |
— | ||
|
2
|
2
76201-SM4-J21YJ
Housing
|
76201-SM4-J21YJ |
— | ||
|
2
|
2
76201-SM4-J21YP
Housing
|
76201-SM4-J21YP |
— | ||
|
2
|
2
76201-SM4-J21YR
Housing
|
76201-SM4-J21YR |
— | ||
|
2
|
2
76201-SM4-J21YH
Housing
|
76201-SM4-J21YH |
— | ||
|
2
|
2
76201-SM4-J21YK
Housing
|
76201-SM4-J21YK |
— | ||
|
3
|
3
76203-SL5-Y21
Mirror
|
76203-SL5-Y21 |
— | ||
|
4
|
4
76212-SW5-003
Holder
|
76212-SW5-003 |
— | ||
|
5
|
5
76213-SM4-003
Pin
|
76213-SM4-003 |
— | ||
|
6
|
6
76213-SW5-A21
Actuator set
|
76213-SW5-A21 |
— | ||
|
7
|
7
76220-SL4-003
Garnish
|
76220-SL4-003 |
— | ||
|
8
|
8
76250-SW5-Y22ZD
Mirror assy
|
76250-SW5-Y22ZD |
— | ||
|
8
|
8
76250-SW5-Y22ZF
Mirror assy
|
76250-SW5-Y22ZF |
— | ||
|
8
|
8
76250-SW5-Y22ZA
Mirror assy
|
76250-SW5-Y22ZA |
— | ||
|
8
|
8
76250-SW5-Y22ZC
Mirror assy
|
76250-SW5-Y22ZC |
— | ||
|
8
|
8
76250-SW5-Y22ZE
Mirror assy
|
76250-SW5-Y22ZE |
— | ||
|
8
|
8
76250-SW5-Y22ZB
Mirror assy
|
76250-SW5-Y22ZB |
— | ||
|
9
|
9
76251-SM4-J21YQ
Housing
|
76251-SM4-J21YQ |
— | ||
|
9
|
9
76251-SM4-J21YJ
Housing
|
76251-SM4-J21YJ |
— | ||
|
9
|
9
76251-SM4-J21YP
Housing
|
76251-SM4-J21YP |
— | ||
|
9
|
9
76251-SM4-J21YR
Housing
|
76251-SM4-J21YR |
— | ||
|
9
|
9
76251-SM4-J21YH
Housing
|
76251-SM4-J21YH |
— | ||
|
9
|
9
76251-SM4-J21YK
Housing
|
76251-SM4-J21YK |
— | ||
|
10
|
10
76253-SL5-Y21
Mirror
|
76253-SL5-Y21 |
— | ||
|
11
|
11
76263-SW5-A21
Actuator set
|
76263-SW5-A21 |
— | ||
|
12
|
12
76270-SL4-003
Garnish
|
76270-SL4-003 |
— | ||
|
13
|
13
76290-SR3-003
Screw
|
76290-SR3-003 |
— | ||
|
14
|
14
76291-SR3-003
Screw
|
76291-SR3-003 |
— | ||
|
15
|
15
76401-SH3-901 BaseSTAY (MATSUYAMA) |
76401-SH3-901 |
US $6.16 |
||
|
16
|
16
76430-SM4-003ZA MirrorRR. VIEW (DAY/NIGHT) *NH167L* |
76430-SM4-003ZA |
US $97.28 |
||
|
17
|
17
88147-SA5-003
Washer
|
88147-SA5-003 |
— | ||
|
18
|
18
88148-SE0-003 BoltLOCK, 6X7 (MATSUYAMA) |
88148-SE0-003 |
US $1.61 |
||
|
19
|
19
90143-SW5-003
Screw
|
90143-SW5-003 |
— | ||
|
20
|
20
90102-SW5-003
Screw
|
90102-SW5-003 |
— | ||
|
21
|
21
90145-SK8-003
Screw
|
90145-SK8-003 |
— | ||
|
22
|
22
90145-SW5-003
Screw-washer
|
90145-SW5-003 |
— | ||
|
23
|
23
90410-SM4-003
Screw
|
90410-SM4-003 |
— | ||
|
24
|
24
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
25
|
25
91565-SW5-003 ClampHARNESS |
91565-SW5-003 |
US $1.96 |
||
|
26
|
26
93600-050-200-A ScrewFLAT, 5X20 |
93600-050-200-A |
from US $0.37 |
||
|
27
|
27
93893-050-120-0 Screw-washer5X12 |
93893-050-120-0 |
from US $0.52 |
