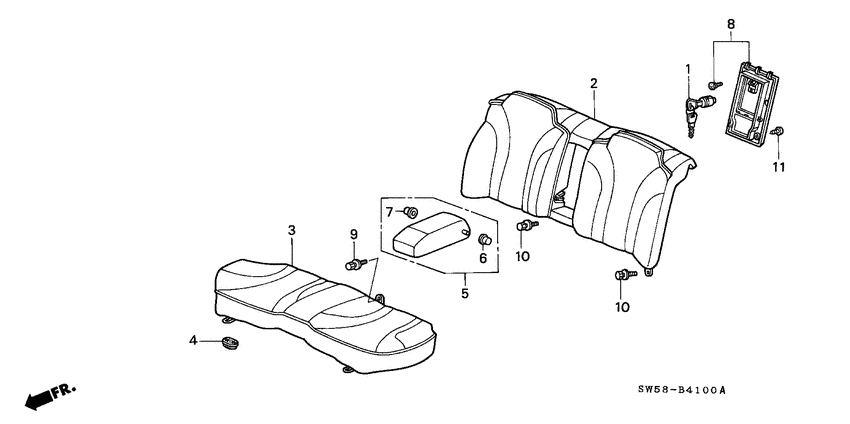

Rear seat (1) Diagram Honda VIGOR
- Year
- 1996
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VIGOR
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77520-SL9-003
Cylinder
|
77520-SL9-003 |
— | ||
|
2
|
2
82120-SW5-A01ZB Seatback assy.RR. (FABRIC) *YR168L* |
82120-SW5-A01ZB |
US $1,186.56 |
||
|
2
|
2
82120-SW5-A01ZA Seatback assy.RR. (FABRIC) *NH279L* |
82120-SW5-A01ZA |
US $1,186.56 |
||
|
3
|
3
82130-SW5-J31ZA
Cushion assy
|
82130-SW5-J31ZA |
— | ||
|
3
|
3
82130-SW5-J31ZB
Cushion assy
|
82130-SW5-J31ZB |
— | ||
|
4
|
4
82137-SE3-004
Rubber
|
82137-SE3-004 |
— | ||
|
5
|
5
82180-SW5-J31ZB
Armrest assy
|
82180-SW5-J31ZB |
— | ||
|
5
|
5
82180-SW5-J31ZA
Armrest assy
|
82180-SW5-J31ZA |
— | ||
|
6
|
6
82183-SW5-J01
Collar
|
82183-SW5-J01 |
— | ||
|
7
|
7
82183-SW5-J01
Collar
|
82183-SW5-J01 |
— | ||
|
8
|
8
82186-SW5-A02ZD Lid assyRR. ARMREST *NH120L* |
82186-SW5-A02ZD |
US $85.12 |
||
|
9
|
9
90003-692-000 BoltFLANGE, 6X16 |
90003-692-000 |
US $2.31 |
||
|
10
|
10
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
11
|
11
93903-45280 ScrewTAPPING, 5X12 |
93903-45280 |
from US $0.37 |
