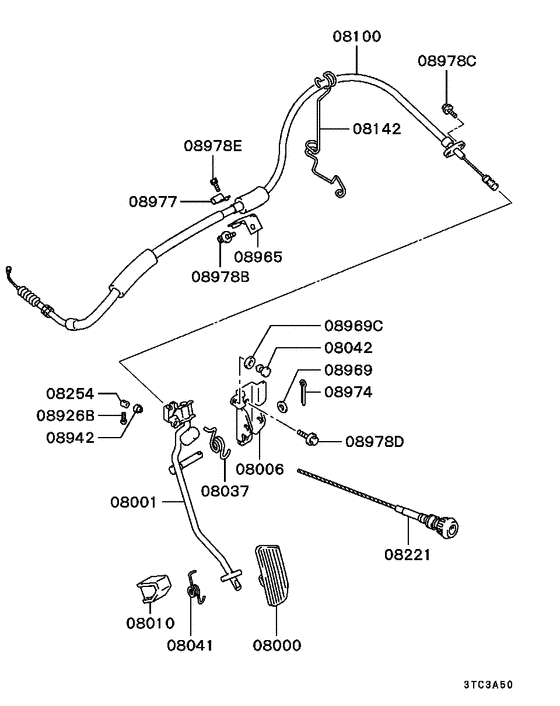

Engine control Diagram Mitsubishi 1/2T TRUCK<MD>
- Year
- 1999 - 2009
- Sales region
- Japan
- Note
- BRSFE
- grade
- BRSFE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MB599226 PEDAL, ACCEL |
MB599226 |
from US $2.91 |
||
|
08001
|
08001
MR112952 ARM, ACCEL PEDAL |
MR112952 |
US $34.78 |
||
|
08006
|
08006
MR307661 BRACKET, ACCEL PEDAL ARM |
MR307661 |
US $8.73 |
||
|
08010
|
08010
MB864399 PAD, ACCEL PEDAL |
MB864399 |
US $8.07 |
||
|
08037
|
08037
MB011387 SPRING, ACCEL PEDAL ARM RETURN |
MB011387 |
from US $2.20 |
||
|
08041
|
08041
MB599227 SPRING, ACCEL PEDAL RETURN |
MB599227 |
US $4.92 |
||
|
08042
|
08042
MA152079 STOPPER, ACCEL PEDAL ARM |
MA152079 |
US $3.56 |
||
|
08100
|
08100
MN103681 CABLE, ACCEL |
MN103681 |
US $40.70 |
||
|
08100
|
08100
MR163894 CABLE, ACCEL |
MR163894 |
US $54.76 |
||
|
08142
|
08142
MB539276 SPRING, ACCEL CABLE SUPPORT |
MB539276 |
US $9.18 |
||
|
08142
|
08142
MN103682 SPRING, ACCEL CABLE SUPPORT |
MN103682 |
US $8.29 |
||
|
08221
|
08221
1610A046 CABLE, ENG IDLE CONTROL |
1610A046 |
US $9.77 |
||
|
08221
|
08221
MR133170 CABLE, ENG IDLE CONTROL |
MR133170 |
from US $11.99 |
||
|
08221
|
08221
MR589810 CABLE, ENG IDLE CONTROL |
MR589810 |
US $11.99 |
||
| replacement | |||||
|
08221
|
08221
1610A046 CABLE, ENG IDLE CONTROL |
1610A046 |
US $9.77 |
||
|
08254
|
08254
MA316460 LOCK, ENG IDLE CONTROL CABLE |
MA316460 |
US $8.07 |
||
|
08926B
|
08926B
MF200025 SCREW, ROCKER COVERMachine,4x8 |
MF200025 |
US $2.19 |
||
|
08942
|
08942
MB181326 BUSHING, ENG IDLE CONTROL EQUIP |
MB181326 |
US $5.47 |
||
|
08965
|
08965
MR163960 STAY, ACCEL CONTROL EQUIP |
MR163960 |
US $3.85 |
||
|
08969
|
08969
MA152064 WASHER, WATER SEPARATOR INR |
MA152064 |
US $4.24 |
||
|
08969C
|
08969C
MF450004 WASHER, ROCKER COVERPlain,6 |
MF450004 |
from US $0.82 |
||
|
08974
|
08974
MF472067 PIN, WATER SEPARATOR INRSplit,3x20 |
MF472067 |
from US $0.45 |
||
|
08977
|
08977
MB004984 CLIP, PARKING BRAKE CABLE9.5 |
MB004984 |
US $4.79 |
||
|
08978B
|
08978B
MB133472 BOLT, FUEL TANKWasher assembled,8x20 |
MB133472 |
from US $2.18 |
||
|
08978C
|
08978C
MS240022 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x20 |
MS240022 |
US $2.19 |
||
|
08978D
|
08978D
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
08978E
|
08978E
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
