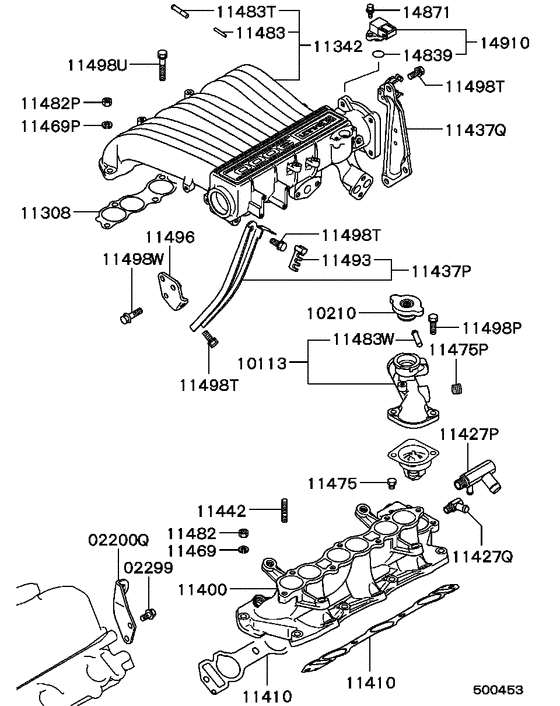

Inlet manifold (SOHC) Diagram Mitsubishi 3000GT
- Year
- 1996 - 1999
- Sales region
- MMNA
- Note
- HIGH LINE(SOHC),5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MD107317 ENGINE HANGER |
MD107317 |
US $20.72 |
||
|
02200Q
|
02200Q
MD155655 ENGINE HANGER |
MD155655 |
US $55.50 |
||
|
02299
|
02299
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
02299
|
02299
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
02299
|
02299
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
10113
|
10113
MD153688
FITTING, COOLING WATER OUTLET HOSE
|
MD153688 |
— | ||
|
10113
|
10113
MD154023
FITTING,COOLING WATER OUTLET HOSE
|
MD154023 |
— | ||
|
10210
|
10210
MB660701
CAP,RADIATOR
|
MB660701 |
— | ||
|
11308
|
11308
MD143791
GASKET, ENG AIR INTAKE SURGE TANK
|
MD143791 |
— | ||
|
11308
|
11308
MD149539 GASKET, ENG AIR INTAKE SURGE TANK |
MD149539 |
from US $10.71 |
||
|
11342
|
11342
MD318321
TANK,ENG AIR INTAKE SURGE
|
MD318321 |
— | ||
|
11342
|
11342
MD318837
TANK,ENG AIR INTAKE SURGE
|
MD318837 |
— | ||
|
11342
|
11342
MD340789
TANK,ENG AIR INTAKE SURGE
|
MD340789 |
— | ||
|
11400
|
11400
MD162568 MANIFOLD, INLET |
MD162568 |
US $643.55 |
||
|
11400
|
11400
MD164708 MANIFOLD, INLET |
MD164708 |
US $783.33 |
||
|
11410
|
11410
MD151707
GASKET, INLET MANIFOLD
|
MD151707 |
— | ||
| replacement | |||||
|
11410
|
11410
MD164701 GASKET, INLET MANIFOLD |
MD164701 |
US $25.99 |
||
|
11410
|
11410
MD154025
GASKET, INLET MANIFOLD
|
MD154025 |
— | ||
| replacement | |||||
|
11410
|
11410
MD168419 GASKET, INLET MANIFOLD |
MD168419 |
from US $23.46 |
||
|
11410
|
11410
MD164701 GASKET, INLET MANIFOLD |
MD164701 |
US $25.99 |
||
|
11427P
|
11427P
MD105014
JOINT, INLET MANIFOLD
|
MD105014 |
— | ||
|
11427Q
|
11427Q
MD143344
JOINT, INLET MANIFOLD
|
MD143344 |
— | ||
|
11437P
|
11437P
MD157029 STAY, INLET MANIFOLD |
MD157029 |
US $36.26 |
||
|
11437P
|
11437P
MD166738 STAY, INLET MANIFOLD |
MD166738 |
US $55.50 |
||
|
11437Q
|
11437Q
MD149841 STAY, INLET MANIFOLD |
MD149841 |
US $41.44 |
||
|
11437Q
|
11437Q
MD159241 STAY, INLET MANIFOLD |
MD159241 |
US $61.42 |
||
|
11437Q
|
11437Q
MD305251
STAY,INLET MANIFOLD
|
MD305251 |
— | ||
|
11437Q
|
11437Q
MD340792
STAY,INLET MANIFOLD
|
MD340792 |
— | ||
|
11442
|
11442
MS401927 STUD, INLET MANIFOLD8x25 |
MS401927 |
US $2.52 |
||
|
11469
|
11469
MF450435 WASHER, INLET MANIFOLDSpring,8 |
MF450435 |
US $1.48 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11469P
|
11469P
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11475
|
11475
MD165226 PLUG, INLET MANIFOLDTaper,1/8 |
MD165226 |
US $4.24 |
||
|
11475P
|
11475P
MS661162 PLUG, INLET MANIFOLDTaper,3/8 |
MS661162 |
from US $3.43 |
||
|
11482
|
11482
MD090676 NUT, TIMING BELT TRAINFlange,8 |
MD090676 |
US $3.97 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11482P
|
11482P
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483
|
11483
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11483T
|
11483T
MD107333 NIPPLE, INLET MANIFOLD6.35 |
MD107333 |
US $10.21 |
||
|
11483W
|
11483W
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11493
|
11493
MD017652 CLAMP, ROCKER COVER |
MD017652 |
US $2.05 |
||
|
11496
|
11496
MD149842 BRACKET, INLET MANIFOLD |
MD149842 |
US $28.86 |
||
|
11498P
|
11498P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
11498P
|
11498P
MF241855 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241855 |
US $3.01 |
||
|
11498T
|
11498T
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498T
|
11498T
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498U
|
11498U
MF241262 BOLT, ENG RH COVERWasher assembled,8x45 |
MF241262 |
US $4.10 |
||
|
11498U
|
11498U
MF241269 BOLT, ENG OIL PANWasher assembled,8x80 |
MF241269 |
US $3.11 |
||
|
11498U
|
11498U
MF241862
BOLT, INLET MANIFOLD
|
MF241862 |
— | ||
|
11498U
|
11498U
MF241869 BOLT, INLET MANIFOLDWasher assembled,8x80 |
MF241869 |
US $3.26 |
||
|
11498W
|
11498W
MF140229 BOLT, CYLINDER BLOCKFlange,8x30 |
MF140229 |
from US $1.11 |
||
|
14839
|
14839
MD632057 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632057 |
from US $2.22 |
||
|
14871
|
14871
MF244805 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x18 |
MF244805 |
from US $1.33 |
||
|
14910
|
14910
MD305600 SENSOR, INLET MANIFOLD DIFF PRESSURE |
MD305600 |
from US $292.03 |
||
